The LP8556TME-E03 is a high-efficiency, precision LED backlight driver from Texas Instruments, designed to enhance the visual performance of displays in a diverse range of applications. This advanced lighting solution is ideal for powering the backlight in notebooks, tablets, and monitors, providing consistent and high-quality illumination.

Key Features

• High-Efficiency: The LP8556TME-E03 is engineered for maximum power efficiency, which helps extend battery life in portable devices.
• SmartDim™ Technology: Equipped with Texas Instruments' proprietary SmartDim™ technology, this driver offers a seamless and smooth dimming experience, ensuring comfortable viewing in various lighting conditions.
• Programmable LED Current: Users can program the LED current to match specific display requirements, providing flexibility and precision in controlling the brightness levels.
• Integrated Boost Converter: The device includes an integrated boost converter that steps up the voltage to adequately power the series LED string, thus minimizing the need for external components.
• Pulse Width Modulation (PWM) Input: The PWM input allows for a straightforward and efficient method to control the LED brightness with a high dimming ratio, offering excellent control over the display's backlight intensity.
• Thermal Protection: The LP8556TME-E03 is built with thermal shutdown protection to prevent overheating, ensuring reliable performance and longevity of the backlight system.

Applications

The versatility of the LP8556TME-E03 makes it suitable for a wide range of applications, including:

• Notebook computers
• Tablet PCs
• Monitors and TVs
• Portable media players
• Automotive infotainment systems

Technical Specifications

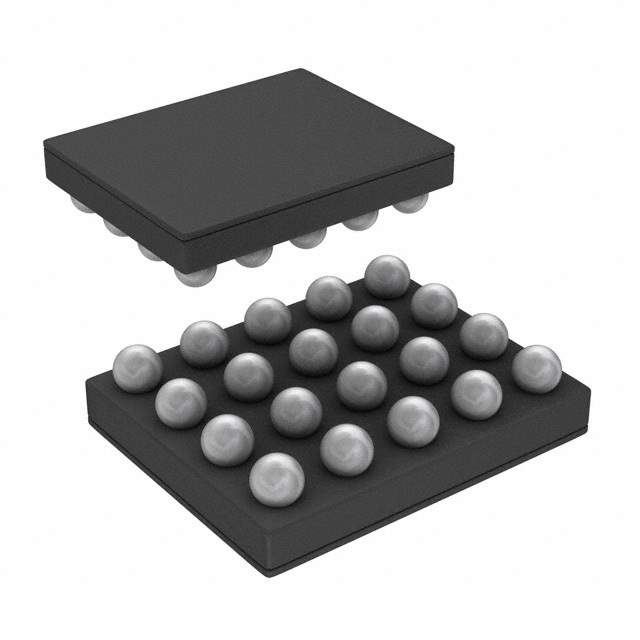

The LP8556TME-E03 operates over a wide input voltage range and is available in a compact, 24-pin DSBGA package. It is designed to drive up to 10 LEDs in series with high precision and uniformity. The device's advanced features and robust design make it a top choice for designers seeking an efficient and reliable backlighting solution.
