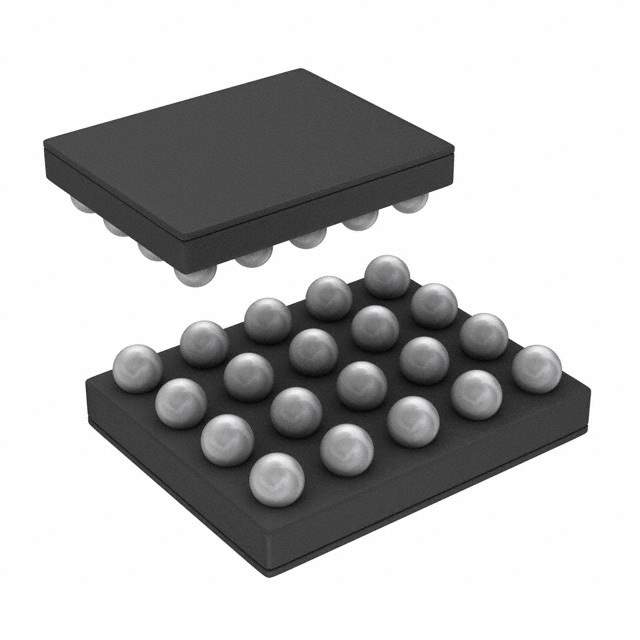

LP8556TME-E04/NOPB Real Image
Same model may have multiple batches, images only for reference.

LP8556TME-E04/NOPB

Part No LP8556TME-E04/NOPB
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 20DSBGA
Datasheet
LP8556TME-E04/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 6
Operating Input Voltage(Min) 2.7V
Maximum Supply Voltage 20V
Output Voltage 16 V to 25 V
Channel Output Current 20mA
Frequency 312kHz, 625kHz, 1250kHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -30°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 20-DSBGA
Win Source Part Number 123895-LP8556TME-E04/NOPB
Ultra Librarian 3D Model Ultra Librarian LP8556TME-E04/NOPB CAD Model

Description

The LP8556TME-E04/NOPB is a high-efficiency LED driver from Texas Instruments, a renowned technology company. It is designed to drive LED strings used in LCD panels found in televisions, monitors, and notebooks.

  • LED Drive Capability: Up to 12 LEDs in series, supports multiple LED string configurations
  • Efficiency: Adaptive supply control for optimized efficiency
  • Dimming Control: 12-bit dimming resolution, PWM and analog dimming
  • Protection Features: Over-voltage, over-temperature, and LED short-circuit protection
  • Package: Compact 20-pin DSBGA package
