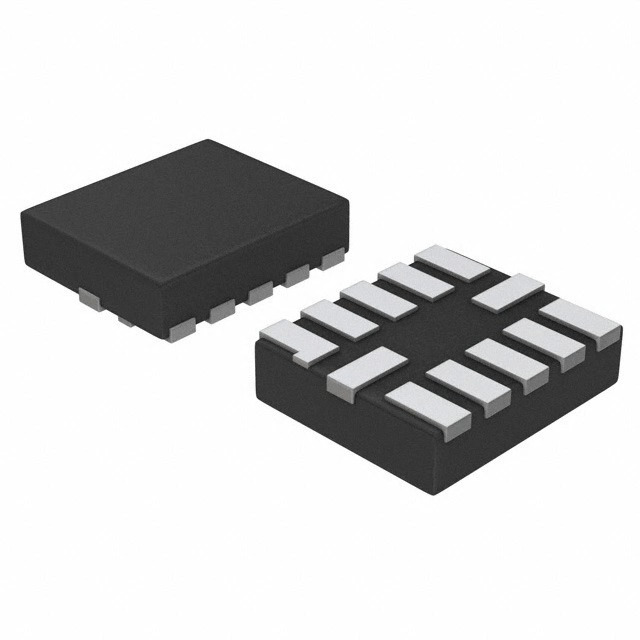

The LSF0204RUTR from Texas Instruments is a versatile, bidirectional voltage-level translator designed for multi-voltage digital system applications. This device is particularly well-suited for scenarios where data transfer is required between low-voltage and higher-voltage components, such as interfacing between advanced microprocessors and peripherals or I/O devices.

Key Features

• Multi-Voltage Translation: Capable of translating between 0.95 V and 5.5 V on the A side and 1.65 V to 5.5 V on the B side, making it highly flexible for different voltage domains.
• Four Bidirectional Channels: Equipped with four channels that allow for simultaneous bidirectional voltage translation, which simplifies design and reduces component count.
• Non-Preferential Power-Up Sequencing: The LSF0204RUTR does not require a specific power supply sequence to be followed, allowing for ease of use and integration into existing designs.
• Low Standby Current: Designed for efficiency, it features a low standby current that helps reduce power consumption in applications where power efficiency is critical.
• No Direction Control Signal Needed: Simplifies application design by not requiring an additional signal to control the direction of data flow.

Applications

The versatility of the LSF0204RUTR makes it suitable for a wide range of applications, including:

• Mobile Devices
• GPS Navigation Systems
• Media Players
• Data Communication Systems
• Computers and Peripherals

Product Specifications

Overall, the LSF0204RUTR is a reliable and efficient solution for systems requiring voltage level translation, offering ease of use and compatibility with a broad range of devices and applications.
