Product Overview: MAX3232EIPWRQ1 from Texas Instruments

The MAX3232EIPWRQ1 is a remarkable interface IC from Texas Instruments, specifically designed for automotive and industrial applications that require robust communication capabilities. This device is part of the MAX3232 family, which is known for providing reliable serial communication by translating signals between a digital logic circuit and a standard RS-232 serial port.

Key Features

• Automotive Qualified: This component is AEC-Q100 qualified, ensuring it meets the stringent requirements for automotive applications.
• Wide Supply Voltage Range: The MAX3232EIPWRQ1 operates over a broad voltage range from 3.0V to 5.5V, making it versatile for various electrical environments.
• Low-Power Consumption: It features a low-power shutdown mode, which significantly reduces power consumption when the device is not in active use, thereby conserving energy in battery-powered applications.
• High Data Rate: The device supports data rates up to 1Mbps, allowing for high-speed data transmission which is essential for modern communication protocols.
• Electrostatic Discharge (ESD) Protection: It comes with built-in ESD protection, which safeguards the device against electrostatic discharges, enhancing its durability and reliability in harsh environments.
• Dual Charge Pump: The integrated dual charge pump circuitry enables the device to deliver true RS-232 performance from a single power supply, eliminating the need for additional power sources.

Applications

The MAX3232EIPWRQ1 is ideally suited for a wide range of applications that require a reliable interface for RS-232 communication. Its robust design makes it perfect for automotive systems, such as diagnostic interfaces and GPS navigation. It is also highly suitable for industrial automation, point-of-sale terminals, and any other systems that leverage RS-232 communication protocols.

Package and Quality

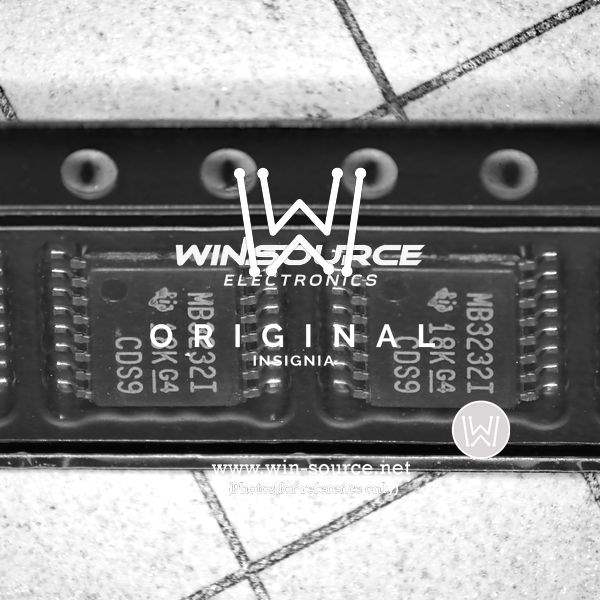

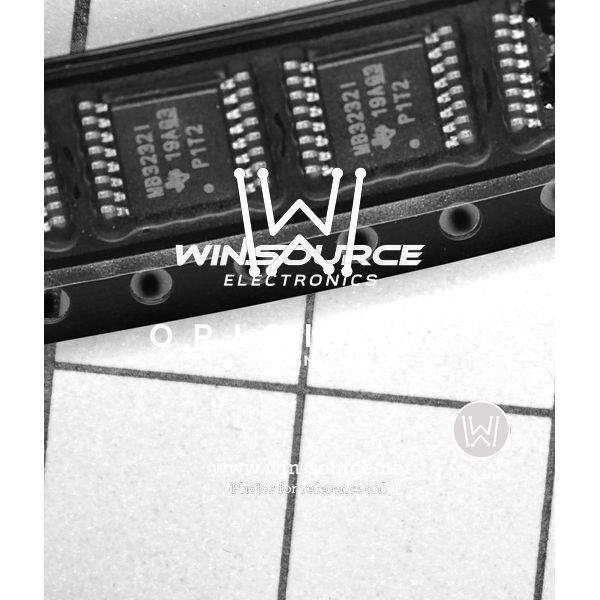

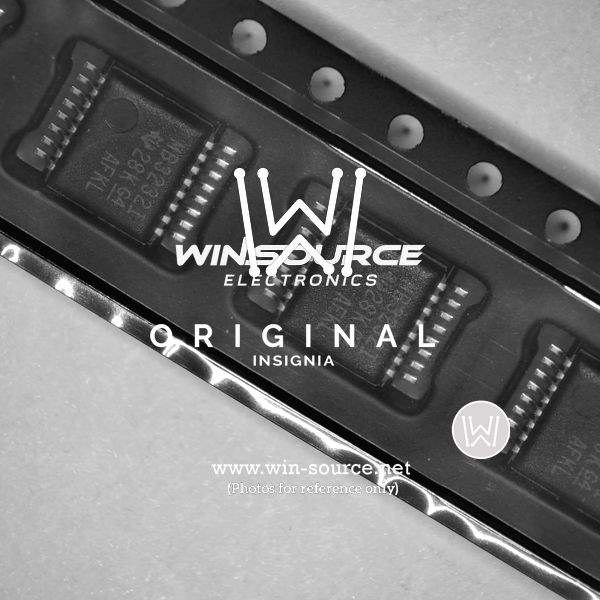

This device is offered in a TSSOP-16 package, which provides a compact footprint for space-constrained applications. Texas Instruments' commitment to quality ensures that the MAX3232EIPWRQ1 meets high manufacturing standards, providing consistent performance and reliability for critical communication systems.

In summary, the MAX3232EIPWRQ1 from Texas Instruments stands out as a robust, high-speed, and energy-efficient solution for RS-232 communication in automotive and industrial applications. Its combination of features and qualifications makes it an excellent choice for designers looking to incorporate a dependable serial interface into their systems.
