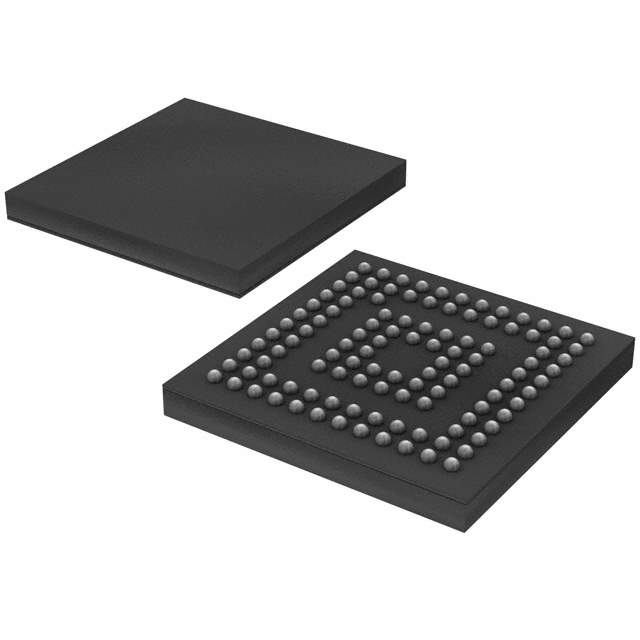

MSP430F5436AIZQWR Real Image
Same model may have multiple batches, images only for reference.

MSP430F5436AIZQWR

Part No MSP430F5436AIZQWR
Manufacturer Texas Instruments
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 192KB FLASH 113BGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Core Processor CPUXV2
Part Core Size 16-Bit
Speed(Frequency) 25MHz
Number of I/O 87
Program Memory Size 192KB (192K x 8)
Program Memory Type FLASH
Data RAM Size 16K x 8
Supply Voltage - Operating 1.8 V to 3.6 V
Data Converters A/D 16x12b
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 113-BGA Microstar Junior (7x7)
Win Source Part Number 142255-MSP430F5436AIZQWR
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian MSP430F5436AIZQWR CAD Model

Description

The MSP430F5436AIZQWR is a high-performance, mixed-signal microcontroller (MCU) manufactured by Texas Instruments, a leading global semiconductor company.

  • CPU: 16-bit RISC
  • Frequency: Up to 25 MHz
  • Flash Memory: 256KB
  • RAM: 18KB
  • Timers: Three 16-bit timers
  • ADC: 12-bit analog-to-digital converter (ADC)
  • USCI: Two universal serial communication interfaces
  • Power-saving modes: Five
  • Package: 113-pin BGA
  • Temperature Range: -40°C to 85°C
