The OMAPL138EZCED4 is a highly integrated microprocessor from Texas Instruments, designed to cater to the demanding requirements of modern embedded audio and video applications. This powerful product combines the benefits of a digital signal processor (DSP) and an ARM processor, making it an ideal choice for developers looking to create high-performance, cost-effective solutions.

Key Features

• Processor Core: The OMAPL138EZCED4 boasts a dual-core architecture, featuring an ARM926EJ-S core and a TMS320C674x DSP core. This combination allows for efficient processing of both control and signal processing tasks.
• Operating Frequency: The ARM core operates at up to 456 MHz, while the DSP core can run at up to 456 MHz, providing ample computational power for complex tasks.
• Memory: It includes an integrated memory controller that supports DDR2, mDDR, and SDRAM, ensuring flexible and fast memory access for various applications.
• Peripherals: A rich set of peripherals is integrated, including USB 2.0 OTG with PHY, Ethernet MAC, SATA 1.0a controller, MMC/SD card interface, and more, to support a wide range of external connections.
• On-chip L3 and L4 Interconnects: These interconnects provide high-bandwidth data paths for inter-core communication, which is essential for real-time data processing.

Applications

The OMAPL138EZCED4 is suited for a variety of applications, particularly in the fields of:

• Industrial automation
• Test and measurement systems
• Audio and voice processing
• Medical imaging
• Digital video applications

Design Support

Texas Instruments provides comprehensive design support for the OMAPL138EZCED4, including software development tools, reference designs, and a robust online community. Developers can access a wealth of resources to accelerate the design process and bring their products to market faster.

Quality and Reliability

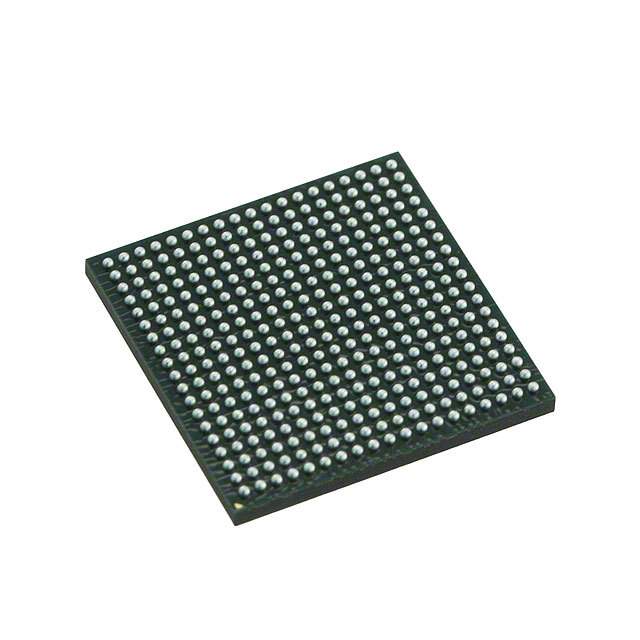

As with all Texas Instruments products, the OMAPL138EZCED4 is manufactured to the highest quality standards, ensuring reliability and performance in even the most challenging environments. This product is available in a 361-pin BGA package, which is designed for efficient thermal management and space-saving on the PCB.
