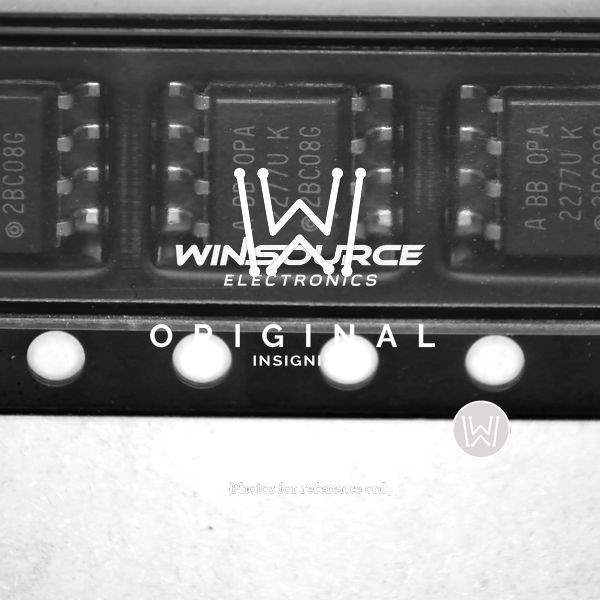

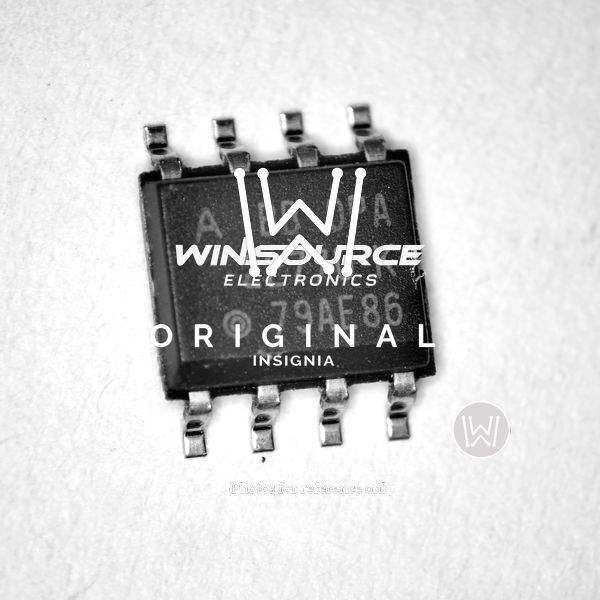

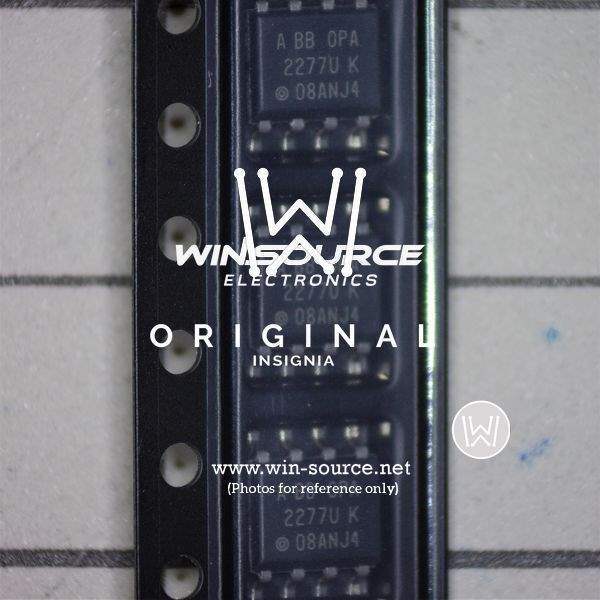

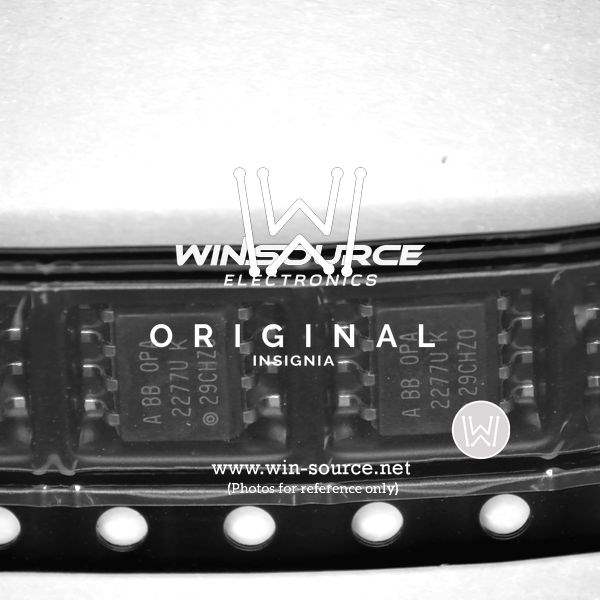

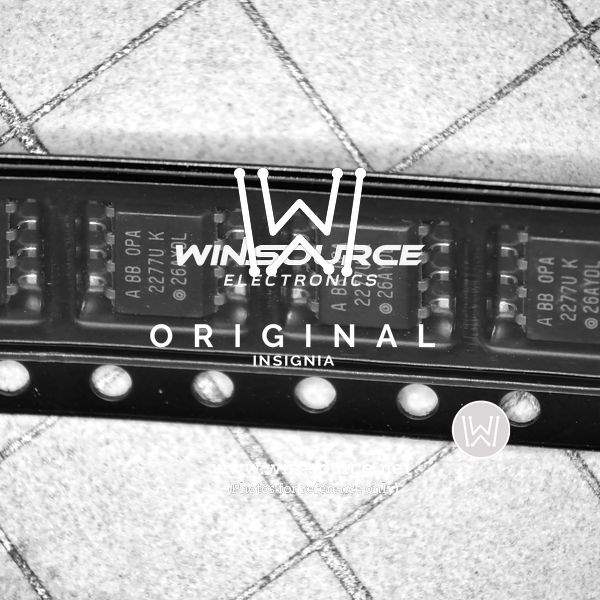

Same model may have multiple batches, images only for reference.

OPA2277UA/2K5

Name: OPA2277UA/2K5
Brand: Texas Instruments
SKU: 263274
Availability: InStock
Rating: 4.84 (519 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	OPA2277UA/2K5
Manufacturer	Texas Instruments
Catalog	Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description	IC OPAMP GP 1MHZ 8SOIC / Op Amp Dual Low Offset Voltage Amplifier ±18V 8-Pin SOIC T/R
Datasheet	OPA2277UA/2K5 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits
Manufacturer	Texas Instruments
Packaging	Reel - TR
Status	Active
Amplifier Type	General Purpose
Number of Circuits	2
Slew Rate	0.8 V/μs
Gain Bandwidth Product (GBP)	1MHz
Current - Input Bias	500pA
Voltage - Input Offset	20μV
Operating Supply Current	790μA
Channel Output Current	35mA
Supply Voltage - Operating	4 V to 36 V, ±2 V to 18 V
Temperature Range - Operating	-40°C to 85°C
Mounting	SMD (SMT)
Case / Package	8-SOIC
Win Source Part Number	026015-OPA2277UA/2K5
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	OPA2277
Introduction Date	June 01, 2006
ECCN	EAR99
Country of Origin	China, Malaysia, Philippines, Taiwan
Halogen Free	Compliant
Estimated EOL Date	2031
Ultra Librarian 3D Model	Ultra Librarian OPA2277UA/2K5 CAD Model

Alternative Products

Description

The OPA2277UA/2K5 is a high-precision, low-noise operational amplifier from Texas Instruments, a well-established and globally recognized company in the field of semiconductor technology.

Offset Voltage and Drift: Ultra-low
Noise Level: Low
Input Noise Voltage: Low
Bandwidth: Wide
Operation: Single-supply
Quiescent Current: Low
Robustness: High
Operating Temperature Range: -40°C to +85°C
Package: Compact, surface-mount
Compliance: RoHS compliant
