Overview of Texas Instruments OPA365AIDBVRG4

The OPA365AIDBVRG4 is a high-performance, CMOS operational amplifier designed by Texas Instruments for a wide range of applications. This op-amp features a single supply voltage that operates from 2.2V to 5.5V, making it an excellent choice for portable and battery-powered applications where power efficiency is crucial. Additionally, the OPA365 boasts a wide bandwidth of 50MHz and a fast slew rate of 25V/μs, providing quick response times in high-speed signal processing tasks.

Key Features

• Low Noise: The OPA365AIDBVRG4 offers a low noise density of 7.5nV/√Hz, ensuring high signal integrity and minimal distortion, which is particularly beneficial for audio and precision measurement systems.
• Rail-to-Rail Output: With rail-to-rail output swing, this op-amp can drive signals to the power supply rails, maximizing the dynamic range in applications such as data acquisition systems and audio processing.
• High Impedance: The input bias current is as low as 1pA, which is ideal for sensor interfaces and other applications that require high input impedance.
• Stable Operation: The OPA365 is designed for stable operation without external compensation, even with capacitive loads up to 150pF, simplifying circuit design and reducing component count.
• Temperature Range: This operational amplifier operates over a wide temperature range from -40°C to +125°C, making it suitable for industrial and automotive applications where temperature extremes are common.

Applications

The Texas Instruments OPA365AIDBVRG4 is versatile for various applications, including:

• Portable and battery-powered devices
• Audio processing and headphone amplifiers
• Data acquisition systems
• Medical instrumentation
• Industrial sensors and control systems
• Automotive electronics

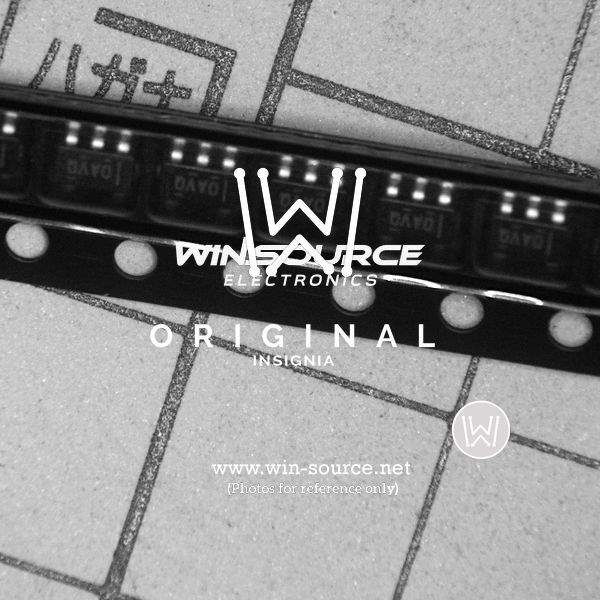

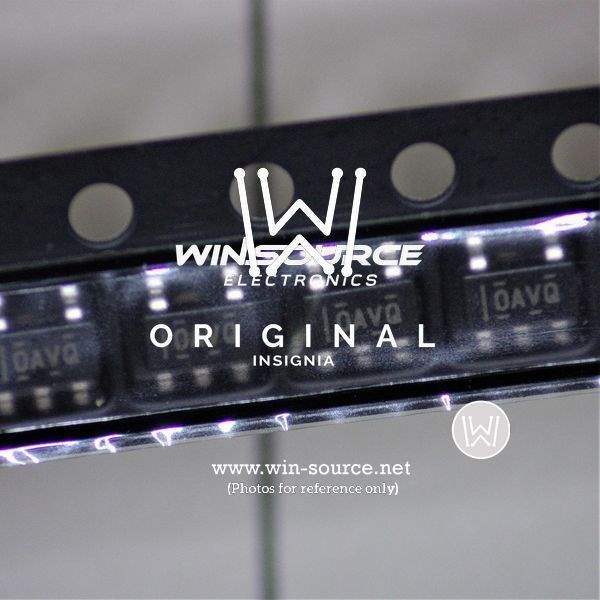

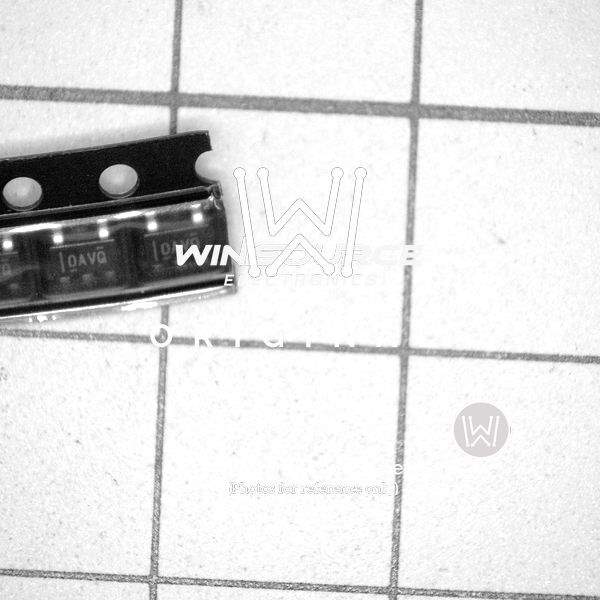

The OPA365AIDBVRG4 comes in a compact SOT-23-5 package, which is suitable for space-constrained applications. Its combination of low power consumption, high speed, and precision makes it an excellent choice for designers looking to balance performance with power efficiency. With Texas Instruments' reputation for quality and reliability, the OPA365AIDBVRG4 is a solid choice for your next high-performance analog circuit design.
