Product Overview: OPA549TG3 by Texas Instruments

The OPA549TG3 is a high-voltage, high-current operational amplifier designed by Texas Instruments, renowned for its reliability and robust performance in a variety of applications. This power op-amp is capable of delivering up to 8A of continuous output current and operates with supply voltages up to ±30V, making it an excellent choice for motor drives, audio applications, and other power-hungry circuits.

Key Features

• High Output Current: The OPA549TG3 offers a high output current of up to 8A, which is suitable for driving a wide range of loads.
• Wide Supply Range: With a supply voltage range of ±4.5V to ±30V, it provides flexibility for various power supply designs.
• Thermal Protection: The device includes internal thermal shutdown protection to safeguard against overheating and potential damage.
• Adjustable Current Limit: Users can set the output current limit to match the requirements of their specific application, providing an additional layer of protection.
• High Slew Rate: A high slew rate of 10V/μs ensures the amplifier can handle rapidly changing signals, making it suitable for audio amplification and servo control systems.

Applications

• Motor Control Circuits
• Audio Power Amplifiers
• Servo Amplifiers
• Power Supplies
• Actuator Drives

Package and Reliability

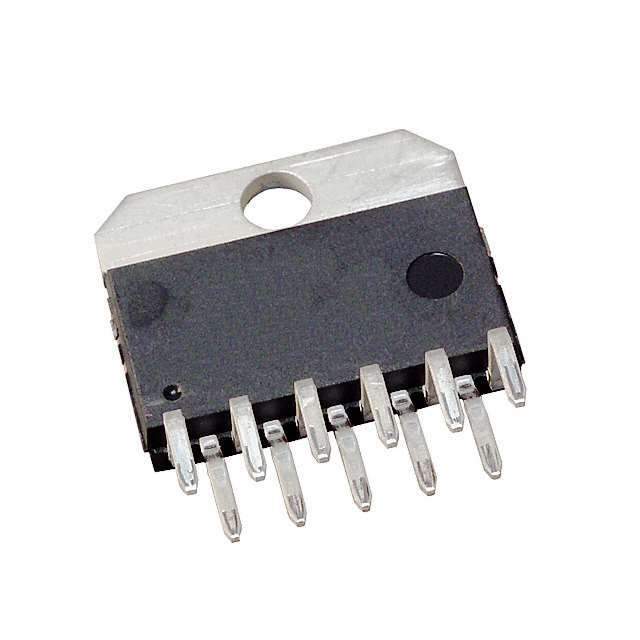

The OPA549TG3 comes in a TO-220 package, which is known for its excellent power dissipation capabilities. The package includes a tab and mounting hole, providing convenient mounting options for heat sinks to manage the thermal performance, which is critical in high-power applications. Texas Instruments' commitment to quality ensures that the OPA549TG3 meets stringent reliability standards, making it a trustworthy component for your power design needs.

Whether you're designing a professional audio system, constructing a robust motor control circuit, or developing a high-performance power supply, the OPA549TG3 by Texas Instruments is a solid choice that combines power, precision, and protection in one package.
