Overview of Texas Instruments OPA857IRGTR

The Texas Instruments OPA857IRGTR is a state-of-the-art, high-speed transimpedance amplifier (TIA) designed for a variety of applications that require the conversion of photodiode currents into a voltage. This particular model is well-suited for light detection and ranging (LIDAR), optical time-of-flight (ToF) systems, and other high-speed photodetector applications.

Key Features

• High Bandwidth: The OPA857IRGTR offers a wide bandwidth of 1.9 GHz, making it ideal for high-speed signal processing tasks.
• Low Noise Performance: With its low input-referred noise of 14 pA/√Hz, it ensures high sensitivity and accuracy in signal detection, which is critical in precision measurement systems.
• Adjustable Gain: The transimpedance gain is adjustable with external feedback resistors, providing flexibility to match the desired application requirements.
• Supply Range: It operates from a single 4.5 V to 5.5 V supply, accommodating a range of power supply options.
• Shutdown Feature: The device includes a shutdown feature that reduces the current consumption to 1 µA, significantly conserving power when the amplifier is not in active use.

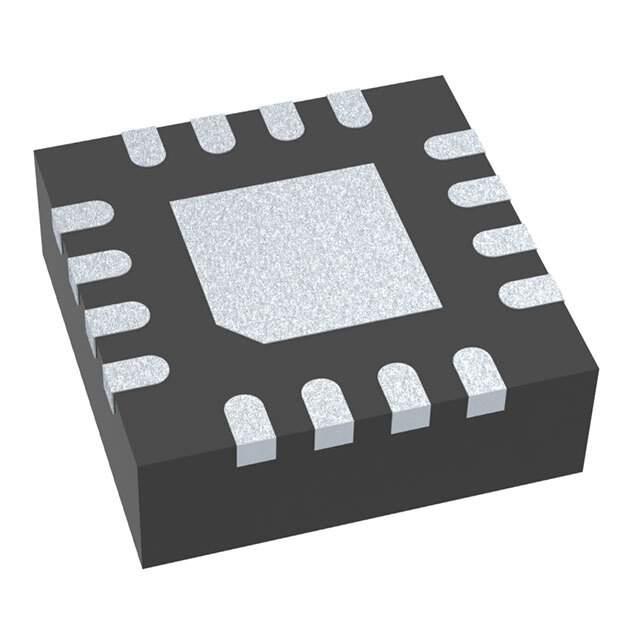

• Package: The OPA857IRGTR is offered in a compact VQFN-16 package, which is suitable for space-constrained applications.

Applications

• LIDAR systems for automotive and industrial applications
• Optical time-of-flight (ToF) sensors
• High-speed photodetection systems
• Optical coherence tomography (OCT)
• Spectroscopy
• Test and measurement equipment

The OPA857IRGTR's combination of high bandwidth, low noise, and adjustable gain makes it a versatile component for designers looking to optimize their optical sensing systems. Its robust design and high level of integration help reduce system complexity and enhance overall performance. Whether for advanced industrial sensing, high-precision medical imaging, or cutting-edge automotive safety systems, the OPA857IRGTR from Texas Instruments stands out as a reliable and efficient solution for high-speed transimpedance amplification needs.
