Same model may have multiple batches, images only for reference.

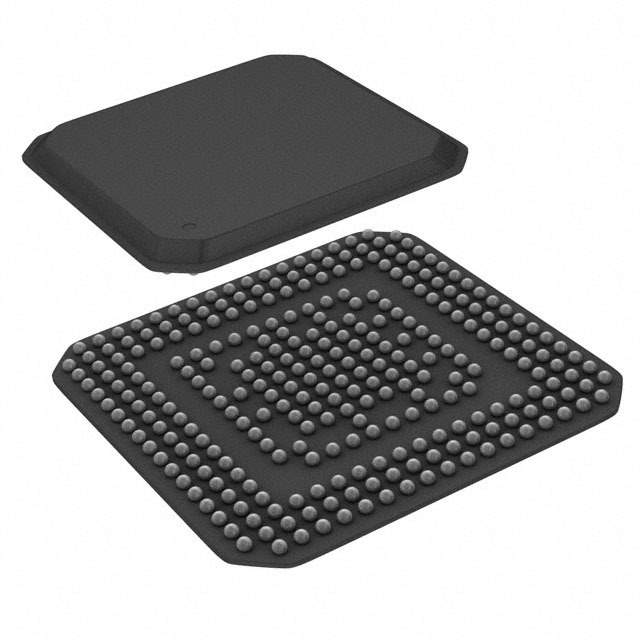

PCI7420GHK Real Image
Same model may have multiple batches, images only for reference.

PCI7420GHK

Part No PCI7420GHK
Manufacturer Texas Instruments
Catalog Interface - Controllers
Description IC 2SLT PC CARD/SC CTLR 288-BGA
Datasheet
PCI7420GHK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tray
Status Obsolete(EOL)
Protocol PCI CardBus
Purpose Controller
Standards IEEE 1394a-2000, OHCI
Supply Voltage - Operating 3.3V, 5V
Case / Package 288-BGA Microstar (16x16)
Win Source Part Number 128901-PCI7420GHK
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PCI7420GHK CAD Model

Description

The PCI7420GHK from Texas Instruments is a highly integrated, multifunctional device that is designed to enhance the performance and functionality of personal computers, workstations, and other systems.

  • Device Type: PCI to CardBus controller
  • Card Support: Supports two independent CardBus sockets compliant with the latest PC Card standards (16-bit PCMCIA and 32-bit CardBus devices)
  • Voltage Operation: 3.3V and 5V operation, with automatic voltage detection and switching
  • Power Saving: Supports sleep and suspend modes
  • FireWire Controller: Integrated IEEE 1394 (FireWire) controller, data transfer rates of up to 400 Mbps
  • Security: Supports the latest security standards, including PCI 2.2 and CardBus PC Card standard
  • Connectivity: Two CardBus sockets, a PCI bus interface, and a FireWire port
