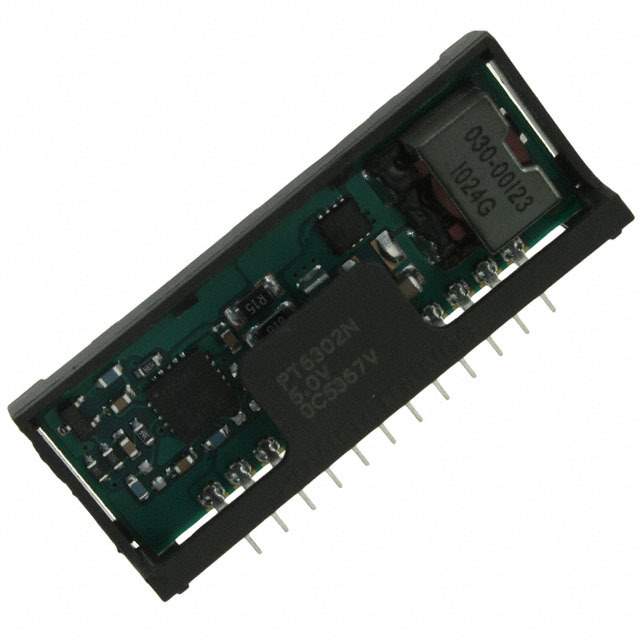

PT6302R

Part No PT6302R
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear + Switching
Description DC DC CONVERTER 5V / Non-Isolated PoL Module DC DC Converter 1 Output 5V 3A 9V - 38V Input
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Texas Instruments
Series PT6300
Package Tray
Product Status Obsolete
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 38V
Voltage - Output 1 5V
Current - Output (Max) 3A
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 89%
Mounting Type Through Hole
Package / Case 12-SIP Module
Base Product Number PT6302
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names PT6302R-NDR
Standard Package 12
Win Source Part Number 1086250-PT6302R
Ultra Librarian 3D Model Ultra Librarian PT6302R CAD Model

Description

Introducing the PT6302R Series from Texas Instruments

The PT6302R Series is a state-of-the-art power module designed and manufactured by Texas Instruments, a leader in the semiconductor industry. This series is specifically engineered to meet the high standards of efficiency and reliability required by today's electronic devices.

Key Features

  • High Efficiency: The PT6302R series is built for optimal performance, offering high efficiency and reduced power loss, making it an ideal choice for energy-sensitive applications.
  • Adjustable Output Voltage: Flexibility is at the core of the PT6302R design, featuring an adjustable output voltage that caters to a wide range of electronics, ensuring compatibility with various devices.
  • Integrated Heat Sink: Heat management is critical in power modules, and the PT6302R comes with an integrated heat sink that provides excellent thermal performance, enhancing the longevity of the module and the device it powers.
  • Compact Design: Space is often a constraint in electronic designs, and the PT6302R addresses this by offering a compact footprint, making it suitable for applications where space is at a premium.
  • Easy Implementation: Designed for ease of use, the PT6302R can be seamlessly integrated into a variety of circuits without the need for complex external components, streamlining the design process.

Applications

The PT6302R Series is versatile and can be used in a multitude of applications, including but not limited to:

  • Telecommunications Equipment
  • Industrial Systems
  • Computing Devices
  • Networking Hardware

Technical Specifications

With a focus on technical excellence, the PT6302R Series boasts impressive specifications that cater to a demanding market. The module operates over a wide input voltage range and delivers a stable and reliable output, ensuring that your devices function at their best under various conditions.

For detailed technical specifications, application notes, and support documentation, please visit the Texas Instruments website or contact their support team for personalized assistance.

Conclusion

The PT6302R Series from Texas Instruments represents a blend of innovation, reliability, and performance. Whether you're designing for industrial, telecommunications, computing, or networking applications, the PT6302R is engineered to exceed expectations and deliver the power your products need.
