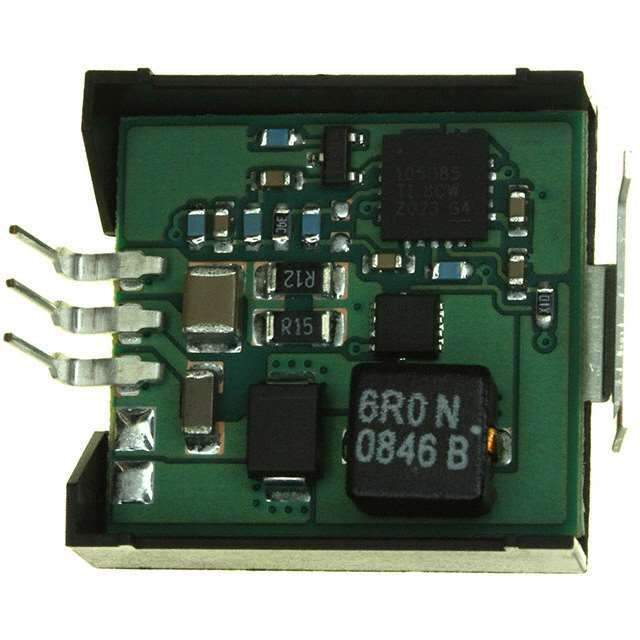

The Texas Instruments PT78HT205H is a highly efficient, reliable, and compact voltage regulator module designed to deliver a fixed output voltage with a high degree of accuracy. This component is part of the PT78HT series, which is known for its ease of use and robust performance in a wide range of applications.

Key Features

• Output Voltage: The PT78HT205H provides a fixed output voltage of 5V, which is ideal for logic circuits and other standard 5V applications.
• Output Current: It can deliver an output current of up to 2A, making it suitable for powering a variety of medium-power devices.
• High Efficiency: With its integrated switching regulator, the module achieves high efficiency, which minimizes heat generation and makes it suitable for high-density circuit designs.
• Wide Input Voltage Range: The device accepts an input voltage range from 9V to 36V, providing flexibility for use in systems with varying supply voltages.
• Thermal Protection: The PT78HT205H includes over-temperature protection, ensuring reliable operation under a range of thermal conditions.
• Short Circuit Protection: Built-in short circuit protection enhances the safety and longevity of the module by preventing damage due to output overloads.
• Easy Integration: With its compact SIP (Single In-line Package) form factor, this voltage regulator can be easily integrated into a variety of circuit layouts without taking up significant board space.

Applications

The PT78HT205H is designed for use in a wide array of applications, including:

• Industrial controls
• Telecommunications equipment
• Consumer electronics
• Computer peripherals
• Power management systems

In summary, the Texas Instruments PT78HT205H is an excellent choice for designers looking for a robust, efficient, and easy-to-use voltage regulator module. Its combination of features ensures that it can meet the needs of a diverse set of applications, providing stable power and protection for electronic devices.
