Same model may have multiple batches, images only for reference.

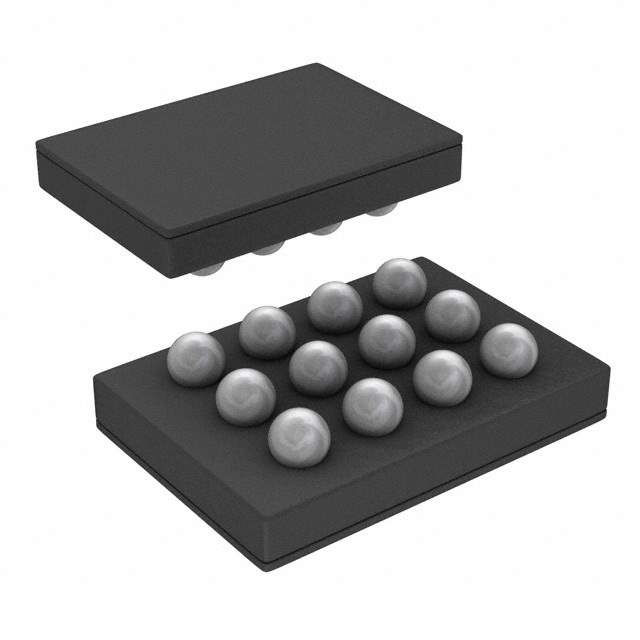

LM3686TLX-AADW/NOPB Real Image
Same model may have multiple batches, images only for reference.

LM3686TLX-AADW/NOPB

Part No LM3686TLX-AADW/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear + Switching
Description IC REG TRPL BUCK/LDO SYNC 12USMD
Datasheet
LM3686TLX-AADW/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Topology Step-Down (Buck) Synchronous (1), Linear (LDO) (2)
Purpose Any Function
Number of Outputs 3
Frequency - Switching 3MHz
Voltage/Current - Output 1 1.8V, 600mA
Voltage/Current - Output 2 1.2V, 350mA
Voltage/Current - Output 3 2.8V, 300mA
w/LED Driver No
w/Supervisor No
w/Sequencer No
Supply Voltage - Operating 2.7 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 12-DSBGA
Win Source Part Number 144716-LM3686TLX-AADW/NOPB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM3686TLX-AADW/NOPB CAD Model

Description

The Texas Instruments LM3686TLX-AADW/NOPB is a sophisticated, multi-functional power management unit (PMU) from Texas Instruments, a globally renowned manufacturer of semiconductors.

  • DC/DC Converter Output Currents: Up to 600mA and 1000mA
  • LDO Current: 200mA
  • Input Voltage Range: 2.7V to 5.5V
  • Operating Temperature Range: -40°C to 85°C
  • Protection Features: Over-temperature, under-voltage lockout, and current limit protection
  • Package: 16-bump micro SMD
