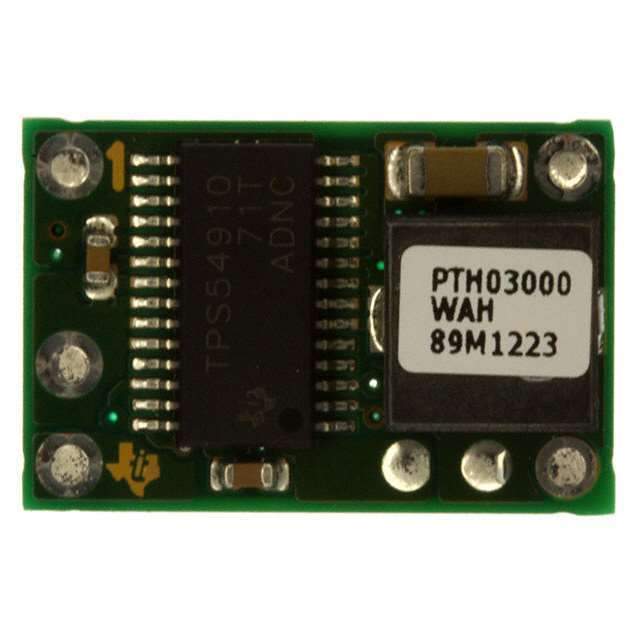

PTH03000WAH

Part No PTH03000WAH
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MODULE PIP .9-2.5V 6A HORZ T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Standard Package 56
Category Power Supplies - Board Mount
Family DC DC Converters
Series PTH03000W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 3V
Voltage - Input (Max) 3.6V
Voltage - Output 1 0.9 ~ 2.5 V
Current - Output (Max) 6A
Applications ITE (Commercial)
Mounting Style Through Hole
Package 5-DIP Module
Size / Dimension 0.75" L x 0.50" W x 0.34" H (19.1mm x 12.7mm x 8.6mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 93%
Power (Watts) - Max 15W
Catalog PTH03000W Series
Win Source Part Number 082084-PTH03000WAH
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name PTH03000
Introduction Date December 01, 2005
ECCN EAR99
Country of Origin United States of America
Halogen Free Not Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian PTH03000WAH CAD Model

Description

The Product PTH03000WAH from Texas Instruments (TI) is an innovative, high-performance, non-isolated power module that is part of the PTH series.

  • Device Type: Low-profile surface-mount device
  • Input Voltage: 5V nominal
  • Output Voltage: Adjustable, 0.8V to 3.6V
  • Maximum Output Current: 10A
  • Key Feature: Use of TI's patented TurboTrans technology
  • Efficiency: Up to 96%
  • Operating Temperature Range: -40°C to 85°C
  • Safety Features: Over-temperature and under-voltage lockout protections
  • Additional Feature: Adjustable soft-start function to limit inrush current
  • Compliance: RoHS compliant
