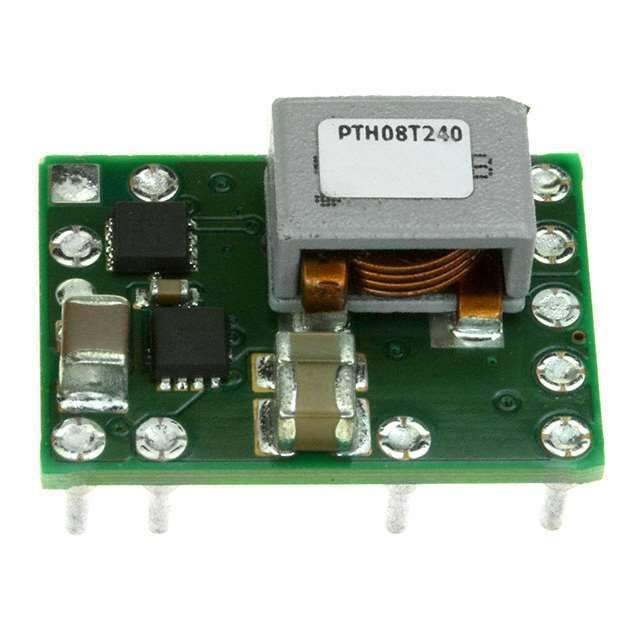

PTH08T240WAH Real Image
Same model may have multiple batches, images only for reference.

PTH08T240WAH

Part No PTH08T240WAH
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description Module DC-DC 1-OUT 0.69V to 5.5V 10A 11-Pin DIP Module Tray / MODULE PIP 10A HORZ T/H 11-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Standard Package 49
Category Power Supplies - Board Mount
Family DC DC Converters
Series PTH08T240W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 14V
Voltage - Output 1 0.69 ~ 5.5 V
Current - Output (Max) 10A
Applications ITE (Commercial)
Mounting Style Through Hole
Package 11-DIP Module
Size / Dimension 0.87" L x 0.62" W x 0.34" H (22.1mm x 15.7mm x 8.6mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 95%
Power (Watts) - Max 55W
Catalog PTH08T240/241W Series
Win Source Part Number 082095-PTH08T240WAH
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name PTH08T240
Introduction Date April 01, 2006
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian PTH08T240WAH CAD Model

Description

The PTH08T240WAH is a high-performance, 50-A rated, non-isolated power module from Texas Instruments.

  • Input Voltage Range: 4.5V to 14V
  • Adjustable Output Voltage Range: 0.69V to 5.5V
  • Efficiency: Up to 95%
  • TurboTrans technology: Patented
  • Over-Temperature Protection: Yes
  • Output Over-Current Protection: Yes
  • Input Under-Voltage Lockout: Yes
  • Size: Compact
  • Package: Low-profile surface mount
  • Auto-Track Sequencing: Yes
