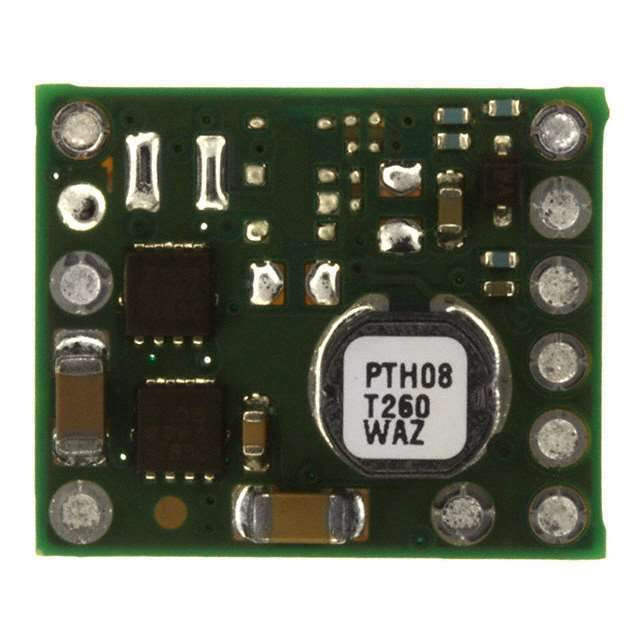

Same model may have multiple batches, images only for reference.

PTH08T261WAZ

Name: PTH08T261WAZ
Brand: Texas Instruments
SKU: 283859
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PTH08T261WAZ
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP 3A ADJ-OUT 10SMD
Datasheet	PTH08T261WAZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PTH08T261W
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	14V
Voltage - Output 1	0.69 ~ 5.5 V
Current - Output (Max)	3A
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, UVLO
Mounting Style	SMD/SMT
Package	10-SMD Module
Size / Dimension	0.75" L x 0.62" W x 0.36" H (19.1mm x 15.7mm x 9.1mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	95%
Power (Watts) - Max	17W
Win Source Part Number	141535-PTH08T261WAZ
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTH08T261WAZ CAD Model

Alternative Products

Description

The PTH08T261WAZ is a highly sophisticated, non-isolated power module from the industry-leading electronic component manufacturer, Texas Instruments.

Rating: 10-A
Input Voltage Range: 4.5V to 14V
Adjustable Output Voltage: 0.69V to 5.5V
Efficiency: Up to 96%
Features: Auto-Track sequencing, pre-bias startup, differential remote sense, and adjustable undervoltage lockout
Package: Compact, surface-mount
Protection Features: Overcurrent, overtemperature, and short-circuit protection
