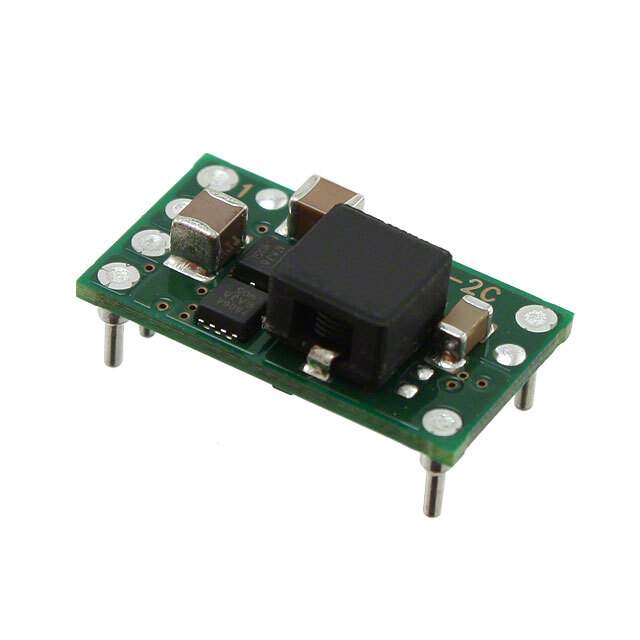

Same model may have multiple batches, images only for reference.

PTH12050LAH

Name: PTH12050LAH
Brand: Texas Instruments
SKU: 283876
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTH12050LAH
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP .8-1.8V 6A HORZ T/H
Datasheet	PTH12050LAH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PTH12050
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	0.8 ~ 1.8 V
Current - Output (Max)	6A
Applications	ITE (Commercial)
Mounting Style	Through Hole
Package	6-DIP Module
Size / Dimension	0.87" L x 0.50" W x 0.34" H (22.1mm x 12.7mm x 8.6mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	88%
Power (Watts) - Max	10.8W
Win Source Part Number	210344-PTH12050LAH
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTH12050LAH CAD Model

Alternative Products

Description

The PTH12050LAH is an innovative power module from Texas Instruments, a renowned global semiconductor design and manufacturing company.

Input Voltage Range: 5.5V to 14V
Maximum Output Current: 50A
Output Voltage: Adjustable from 0.69V to 3.6V
Feature: Synchronous rectification
Protection features: Over-temperature protection, output over-current protection, and output short-circuit protection
Size: 33mm x 22.9mm x 8.5mm
Feature: Auto-Track sequencing
