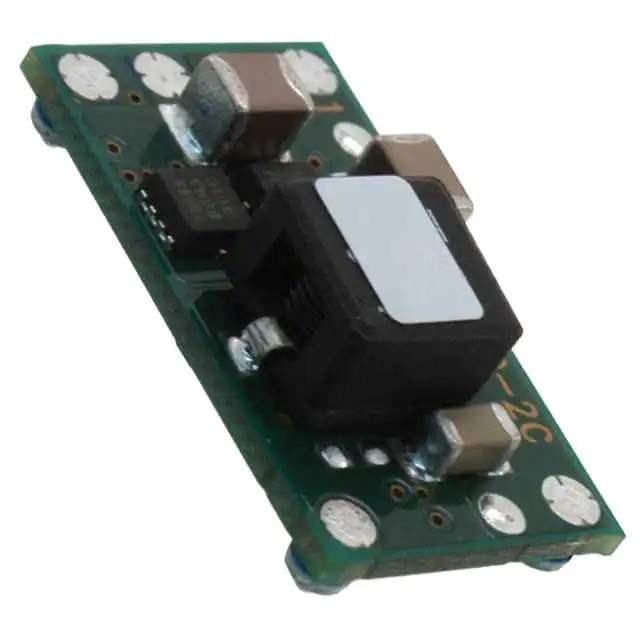

Introducing the PTH12050YAZ Power Module from Texas Instruments

The PTH12050YAZ is a high-performance, non-isolated power module brought to you by Texas Instruments, an industry leader in innovative semiconductor technologies. This power module is part of the PTH12050 series, which is renowned for its exceptional efficiency and reliability. The PTH12050YAZ is specifically designed to meet the needs of a wide range of applications, including but not limited to telecommunications, computing, and industrial systems.

Key Features

• Wide Input Voltage Range: The module operates efficiently with an input voltage range of 10.8V to 13.2V, making it versatile for various systems and ensuring stable performance even with fluctuating supply voltages.
• Adjustable Output Voltage: Users can benefit from an adjustable output voltage ranging from 0.9V to 5.5V, which allows for on-the-fly tuning to match specific requirements of the powered device or circuit.
• High Output Current: With the ability to deliver up to 50A of output current, the PTH12050YAZ is capable of powering even the most demanding loads with ease.
• Efficient Power Conversion: This module boasts high efficiency, which minimizes energy loss during power conversion, leading to a cooler system operation and a longer lifespan for both the power module and system components.
• Advanced Thermal Management: The PTH12050YAZ includes an integrated heat sink that provides superior cooling, ensuring optimal performance even at full load and in high-temperature environments.
• Easy Implementation: Designed with convenience in mind, this power module features through-hole technology for easy mounting on printed circuit boards, and its compact size allows for integration into space-constrained applications.

Applications

The versatile nature of the PTH12050YAZ makes it an excellent choice for a multitude of applications. It is particularly well-suited for use in distributed power architectures, intermediate bus voltage applications, and wherever a high-performance, easy-to-implement power solution is required. Its robust design and flexible operation also make it ideal for industrial and test equipment, ensuring that you can rely on it to deliver consistent power without interruption.

With the PTH12050YAZ, Texas Instruments continues to demonstrate its commitment to providing advanced power management solutions that address the evolving needs of modern electronic systems. Choose the PTH12050YAZ for a power module that delivers not just power, but the confidence and reliability that comes with a product from Texas Instruments.
