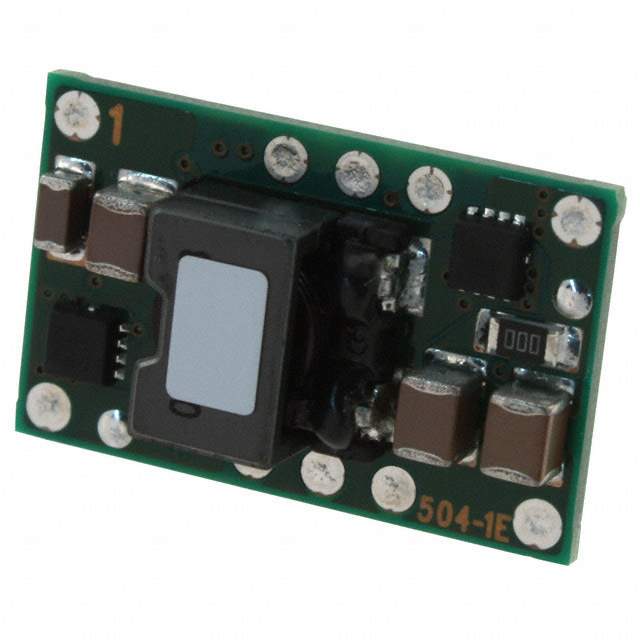

PTH12060WAZT

Name: PTH12060WAZT
Brand: Texas Instruments
SKU: 283890
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PTH12060WAZT
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP 12VIN 10A ADJ 10SMD
Datasheet	PTH12060WAZT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PTH12060
Packaging	Reel(TR)
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	1.2 ~ 5.5 V
Current - Output (Max)	10A
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, UVLO
Mounting Style	SMD/SMT
Package	10-SMD Module
Size / Dimension	1.00" L x 0.62" W x 0.38" H (25.4mm x 15.7mm x 9.7mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	94%
Win Source Part Number	026962-PTH12060WAZT
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PTH12060WAZT CAD Model

Alternative Products

Description

The PTH12060WAZT is a highly sophisticated product from Texas Instruments, a renowned global semiconductor design and manufacturing company.

Rated Current: 10-A
Input Voltage Range: 10.8V to 13.2V
Output Voltage Range: 0.8V to 5.5V
Efficiency: up to 95%
Over-temperature protection: Yes
Output Over-current protection: Yes
Under-voltage lockout: Yes
Size: 33.0mm x 13.4mm x 8.5mm
RoHS compliant: Yes
Applications: data communication equipment, telecommunication equipment, server and storage infrastructure, and industrial equipment
