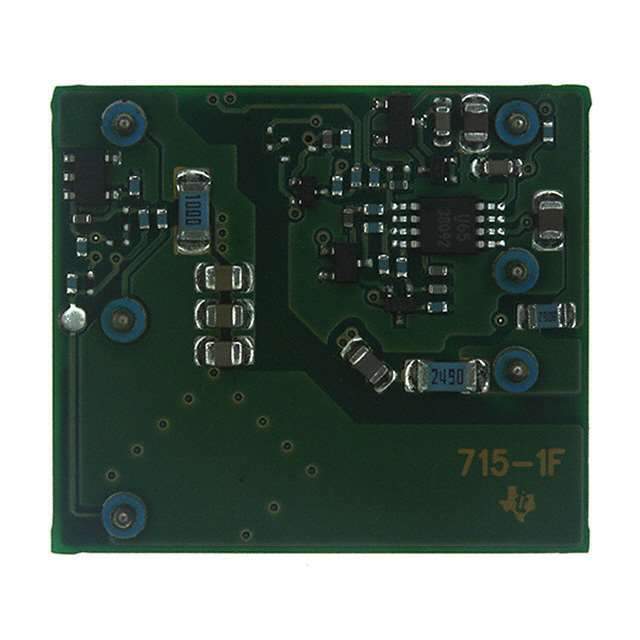

Same model may have multiple batches, images only for reference.

PTMA402050N2AS

Name: PTMA402050N2AS
Brand: Texas Instruments
SKU: 283953
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	PTMA402050N2AS
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	CONV DC-DC 5V 2A NEG SMD
Datasheet	PTMA402050N2AS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PTMA40xx
Packaging	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	5V
Current - Output (Max)	2A
Power (Watts) - Manufacture Series	10W
Voltage - Isolation	1.5kV (1500V)
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, UVLO
Mounting Style	SMD/SMT
Package	6-SMD Module
Size / Dimension	1.10" L x 0.96" W x 0.36" H (27.9mm x 24.4mm x 9.1mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	85%
Power (Watts) - Max	10W
Win Source Part Number	145301-PTMA402050N2AS
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTMA402050N2AS CAD Model

Alternative Products

Description

The PTMA402050N2AS from Texas Instruments is an advanced, high-performance power module designed to deliver excellent power conversion efficiency and reliability.

Output: 2A, 5V
Type: Non-isolated DC/DC power module
Input Voltage Range: 4.5V to 20V
Output Current: 2A continuous
Efficiency: Up to 96% peak
Protection Features: Over-temperature protection, over-current protection, and under-voltage lockout.
Package: Compact, surface-mount
Performance: Superior transient response and low output voltage ripple.
Regulation: Excellent line and load regulation.
