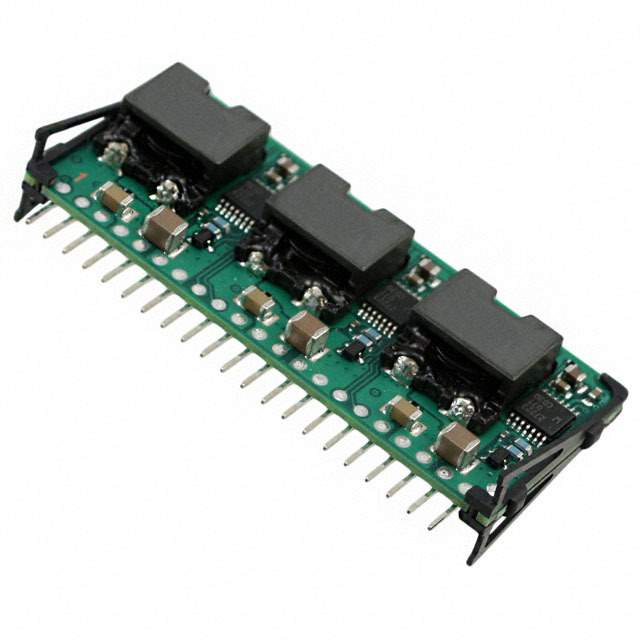

Overview of Texas Instruments PTV08T250WAD

The Texas Instruments PTV08T250WAD is a high-performance, non-isolated adjustable module with PowerTrain™ technology that delivers an exceptional level of efficiency and power density. This advanced power module is designed to meet the rigorous demands of today's high-speed digital systems, providing a reliable and flexible power solution.

Key Features

• Wide Input Voltage Range: The PTV08T250WAD operates over a broad input voltage range from 4.5V to 14V, making it suitable for a variety of applications and ensuring compatibility with diverse power sources.
• Adjustable Output Voltage: This module offers an adjustable output voltage range from 0.7V to 5.5V, allowing for precise voltage regulation tailored to the specific needs of the load.
• High Efficiency: With an efficiency of up to 96%, the PTV08T250WAD minimizes power loss and heat generation, contributing to the overall reliability and longevity of the system.
• Large Output Current: Capable of delivering up to 8A of output current, this power module can easily handle high-power applications.
• Compact Footprint: Its small form factor is ideal for space-constrained applications, ensuring that high performance doesn't come at the expense of valuable board real estate.
• Advanced Thermal Management: The module features an integrated heat spreader for excellent thermal performance, which helps maintain optimal operating temperatures.
• Robust Protection Features: The PTV08T250WAD includes over-temperature, over-current, and under-voltage lockout protections, safeguarding the module and connected components from potential damage.

Applications

The versatility and high performance of the PTV08T250WAD make it an ideal choice for a wide range of applications, including but not limited to:

• Telecommunications equipment
• Networking infrastructure
• Industrial systems
• Server and storage systems
• Point-of-load applications

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and reliability, and the PTV08T250WAD is no exception. It is designed to meet stringent industry standards, ensuring long-term performance and stability in even the most demanding conditions.
