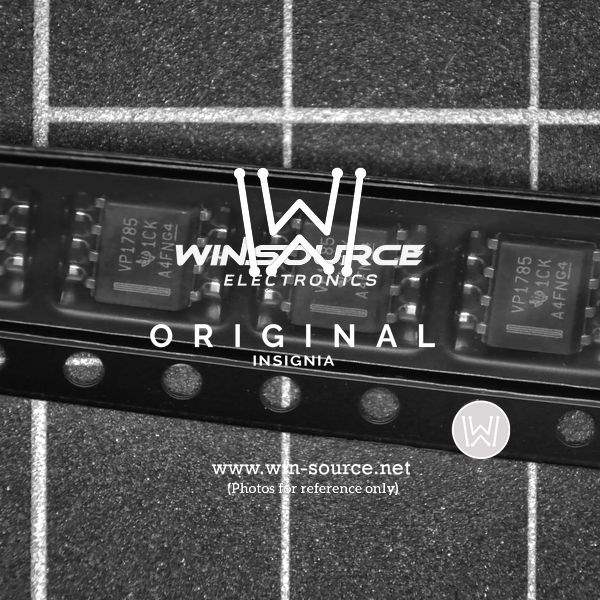

The SN65HVD1785D from Texas Instruments is a robust, 3.3V to 5V differential transceiver designed for RS-485 communication networks. Tailored for industrial applications that demand high-speed data transmission and exceptional noise immunity, this device is a part of the SN65HVD17xx series that offers a variety of features to ensure reliable operation in harsh environments.

Key Features

• Wide Supply Voltage Range: Operates from a 3.3V to 5V supply, making it suitable for a variety of systems and ensuring compatibility with both legacy and modern industrial standards.
• High-Speed Operation: Capable of data rates up to 70 Mbps, the SN65HVD1785D is ideal for high-speed data acquisition, multipoint communication, and other applications that require fast data transfer.
• Robust Electrostatic Discharge (ESD) Protection: Integrated ESD protection up to 16 kV Human Body Model (HBM), ensuring the device's resilience against electrostatic discharges during handling and operation.
• Thermal Shutdown Protection: Features a thermal shutdown mechanism that prevents the device from overheating, enhancing the reliability and longevity of the transceiver.
• Differential Output Exceeds 2.1V: With a differential output voltage that exceeds 2.1V, the SN65HVD1785D ensures strong signal integrity, even over long cable runs and in the presence of electrical noise.
• Fail-Safe Receiver: The receiver input has a fail-safe feature that guarantees a known output state if the input is open or shorted, thereby enhancing data integrity.

Applications

The SN65HVD1785D is designed for use in a wide range of industrial applications, including:

• Industrial control systems
• Building automation
• Factory automation
• Process control networks
• Networked security systems
• Remote meter reading

With its robust design and advanced features, the SN65HVD1785D from Texas Instruments provides a reliable solution for RS-485 communications, ensuring stable and efficient operation in the most demanding industrial environments.
