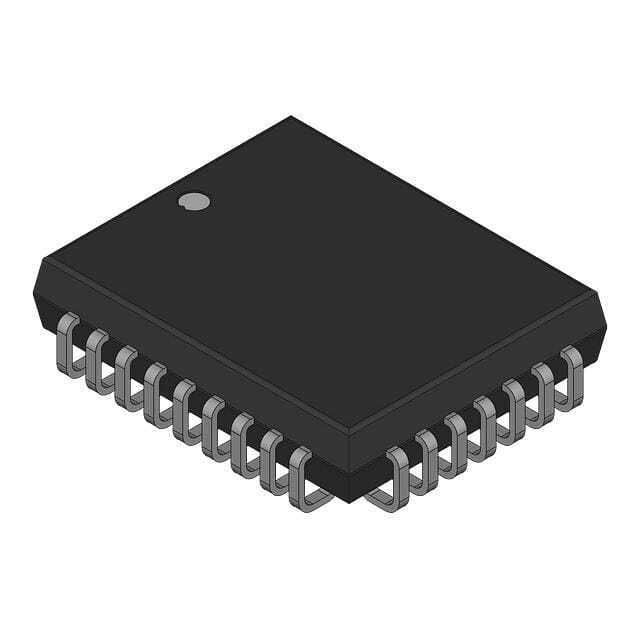

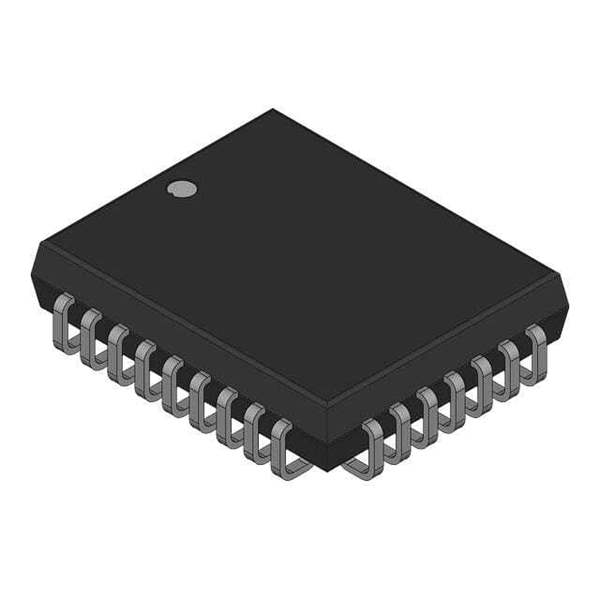

SN74ACT7200L15RJ Logic Gate from Texas Instruments

The SN74ACT7200L15RJ is a high-performance, logic gate IC designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This particular model is part of the 74ACT series, which is known for its advanced CMOS logic, operating at higher speeds while maintaining low power consumption.

Key Features:

• Logic Type: The SN74ACT7200L15RJ is a synchronous FIFO (First In, First Out) logic gate designed for high-speed data buffering.
• Memory Size: It comes with a memory size of 256 x 18, providing ample storage for temporary data holding in complex processing tasks.
• Operating Voltage: This device operates within a voltage range of 4.5V to 5.5V, making it compatible with many standard logic-level systems.
• Frequency: It boasts a clock frequency of 15MHz, ensuring swift data processing and transfer speeds suitable for demanding applications.
• Package / Case: The SN74ACT7200L15RJ is housed in a PLCC (Plastic Leaded Chip Carrier) package, with a 32-lead footprint which is suitable for surface mounting and provides good thermal performance.
• Operating Temperature: The device is designed to operate over an industrial temperature range of -40°C to 85°C, ensuring reliability and performance under extreme conditions.

Applications:

The SN74ACT7200L15RJ is a versatile component that is used across various applications. Its high-speed data handling capabilities make it ideal for:

• Telecommunications
• Data communications
• Networking equipment
• Computer systems
• Signal processing

Quality and Reliability:

Texas Instruments is committed to delivering high-quality products. The SN74ACT7200L15RJ is no exception, as it is designed to meet stringent industry standards for quality and reliability. Users can expect consistent performance and durability, making it a trusted choice for engineers and product designers.
