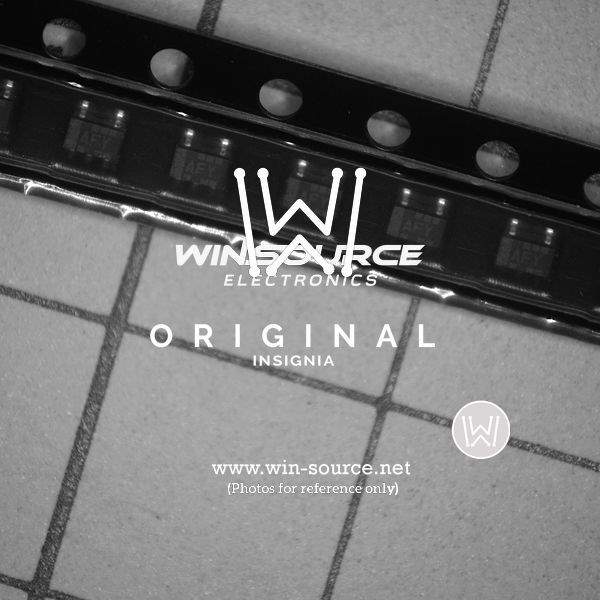

The SN74AHC1G14DCKRE4 is a high-performance, single-gate inverter from Texas Instruments, designed to provide logic-level translation and signal conditioning with Schmitt-trigger inputs. This device is part of the AHC (Advanced High-Speed CMOS) family, which is known for its robustness and high-speed operation.

Key Features

• Logic Type: Inverter with Schmitt-Trigger Input
• Operating Voltage Range: 2V to 5.5V, accommodating a variety of logic-level requirements and making it suitable for interfacing with both 3.3V and 5V systems.
• Output Drive Capability: Capable of driving up to 8 mA at 5V, providing sufficient current for most low-power applications.
• Package: The device is available in a 5-pin SC-70 (SOT-353) package, which is ideal for space-constrained applications.
• Temperature Range: Operational over a broad temperature range from -40°C to 85°C, ensuring reliability in various environmental conditions.

Applications

The SN74AHC1G14DCKRE4 is versatile and can be used in a wide array of applications such as:

• Signal conditioning to eliminate noise
• Logic-level translation in mixed-voltage systems
• Pulse shaping and timing circuits
• Oscillator circuits
• Glitch-free power-up / power-down sequencing

Performance Advantages

With its Schmitt-trigger input, the SN74AHC1G14DCKRE4 provides a hysteresis feature that enhances noise immunity and transforms slowly changing input signals into sharply defined jitter-free output signals. This is particularly beneficial in environments with a high degree of electrical noise or when signal integrity is paramount. Additionally, the low power consumption and high-speed operation of the AHC family make this inverter an excellent choice for energy-sensitive and time-critical applications.

Quality and Reliability

Texas Instruments is known for its commitment to quality and the SN74AHC1G14DCKRE4 is no exception. It is manufactured to the highest standards, ensuring consistent performance and reliability for the end-user. The device also meets or exceeds all applicable industry standards, providing engineers with confidence in their design integrations.
