Product Overview: SN74AUP2G00YFPR by Texas Instruments

The SN74AUP2G00YFPR is a versatile, low-power dual 2-input positive-NAND gate designed and manufactured by Texas Instruments. This high-performance device is part of TI's advanced ultra-low power (AUP) series, which is optimized for low-voltage operation while maintaining excellent speed and performance characteristics.

Key Features

• Low Power Consumption: The SN74AUP2G00YFPR is designed to operate with very low static and dynamic power consumption, making it ideal for battery-powered and power-sensitive applications.
• Operating Voltage Range: It functions within a wide voltage range of 0.8V to 3.6V, providing design flexibility for various system voltage requirements.
• High-Speed Operation: Despite its low-power design, this component does not compromise on speed, offering a typical tpd of 3.9 ns at 3.3 V, ensuring high-speed performance for critical applications.
• IOFF Support: The device features IOFF circuitry which provides partial Power-Down mode operation, helping to prevent damaging current backflow through the device when it is powered down.
• ESD Protection: With integrated electrostatic discharge (ESD) protection, the SN74AUP2G00YFPR can withstand voltage spikes, enhancing its reliability and longevity in harsh environments.

Applications

The SN74AUP2G00YFPR is suitable for a broad range of applications, including:

• Mobile Phones
• PDAs and Handheld Devices
• Portable Media Players
• Medical Monitoring Devices
• Low-Power Computing Devices

Package and Quality

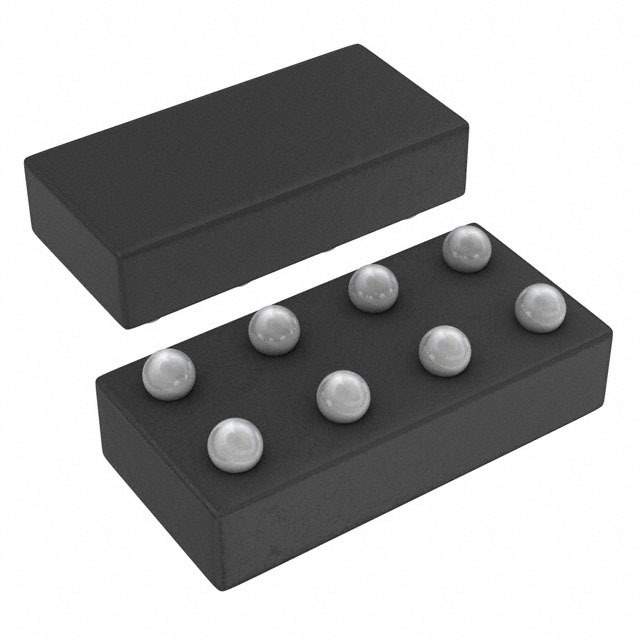

This device is available in a 8-pin DSBGA package, which is characterized by its small footprint and minimal off-board space, allowing for high-density board designs. The product is also RoHS compliant and follows Texas Instruments' commitment to environmentally friendly manufacturing processes.

With its combination of low power, high speed, and robust protection features, the SN74AUP2G00YFPR is an excellent choice for designers looking to optimize their digital logic operations while maintaining energy efficiency and reliability.
