SN74AUP2G125DQER Dual Bus Buffer Gate from Texas Instruments

The SN74AUP2G125DQER is a high-performance, dual bus buffer gate with 3-state outputs from Texas Instruments, designed to operate from 0.8 V to 3.6 V. This device is optimized for low-voltage applications and is part of the advanced ultra-low power (AUP) family, offering a reduced power consumption that is ideal for battery-operated and power-sensitive systems.

Key Features:

• Low Static-Power Consumption: The device boasts a low static power consumption (ICC) of only 0.9 µA max, making it an energy-efficient choice for modern electronic designs.
• Low Dynamic-Power Consumption: At 3.6 V, the dynamic power is as low as 0.045 µA/MHz, further contributing to the overall energy efficiency of the device.
• Low Input Capacitance: With an input capacitance of only 1.5 pF (typical), the SN74AUP2G125DQER ensures minimal loading on input signals.
• 3-State Outputs: The bus buffer gates feature 3-state outputs, which can be placed in a high-impedance state, thus allowing for bus line multiplexing and reducing the chance of bus contention.
• ESD Protection: The device includes robust ESD protection, ensuring reliability and longevity in harsh electrical environments.
• Operational Range: The SN74AUP2G125DQER is designed to operate over a broad voltage range of 0.8 V to 3.6 V, accommodating a variety of logic levels and system requirements.

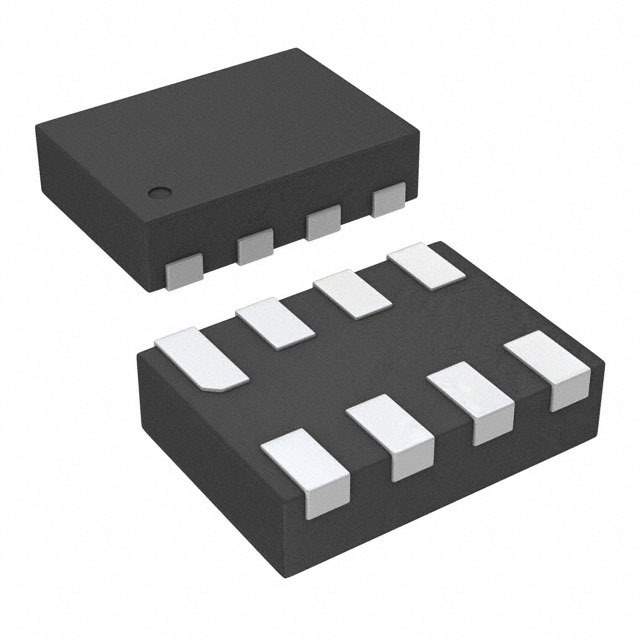

• Package: Offered in a space-saving 8-X2SON package, the device is suitable for compact PCB layouts and high-density applications.

Applications:

The versatility of the SN74AUP2G125DQER makes it suitable for a wide range of applications, including:

• Mobile Phones
• PDAs
• Portable Media Players
• Notebook Computers
• Power Management Systems
• Logic Level Translation

With its advanced design and low-power consumption, the SN74AUP2G125DQER from Texas Instruments is an excellent choice for designers looking to incorporate reliable buffer gates with minimal power draw. Whether for data buffering or signal isolation, this device offers the performance and efficiency required for today's sophisticated electronic systems.
