The SN74AVCH24T245GRGR is a state-of-the-art dual-bit transceiver from Texas Instruments, designed with the modern electronics enthusiast and professional in mind. This device belongs to the SN74 family, which is renowned for its reliability and performance in digital circuit applications.

This particular model features 24-bit dual-supply bus transceivers with configurable voltage-level shifting and 3-state outputs. It is specifically engineered to solve the challenges of voltage level translation when interfacing different logic levels ranging from 1.2V to 3.6V. The SN74AVCH24T245GRGR is ideal for applications that require high-speed bidirectional communication between two buses of different voltage levels.

Key Features:

• Voltage Level Translation: Bidirectional voltage level translation is supported without the need for a direction control signal, simplifying design and reducing signal complexity.
• Speed: The device supports high-speed data transfer rates, making it suitable for high-performance applications.
• Low On-State Resistance: The low on-state resistance of the switch allows for minimal signal distortion and power loss, ensuring signal integrity.
• Power-Off Protection: Inputs and outputs are equipped with power-off protection, which prevents any damaging current backflow through the device if it is powered down.
• Wide Operating Temperature Range: The device operates effectively across a broad temperature range, making it suitable for use in various environments and applications.
• RoHS Compliant: The SN74AVCH24T245GRGR is compliant with the Restriction of Hazardous Substances (RoHS) directive, making it an environmentally friendly choice for electronic designs.

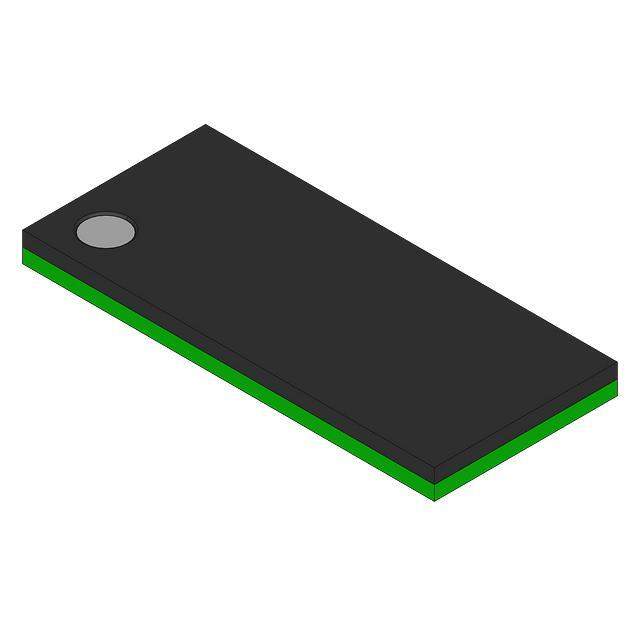

With its robust packaging, the SN74AVCH24T245GRGR is provided in a 64-pin VQFN (RGR) package, ensuring a compact footprint while allowing for efficient thermal performance and ease of integration into a wide range of systems.

Whether you're designing a complex digital system or simply need a reliable solution for level translation, the SN74AVCH24T245GRGR by Texas Instruments is an excellent choice that combines performance, flexibility, and reliability.
