Overview of SN74AXCH2T45DCUR

The SN74AXCH2T45DCUR is a state-of-the-art dual-bit non-inverting bus transceiver from Texas Instruments, designed with the modern electronic engineer's needs in mind. This device is part of the Texas Instruments low-voltage direction-controlled translation family and is intended for bidirectional voltage-level translation from any voltage between 0.65 and 3.6 V to any voltage between 0.65 and 3.6 V, with no direction pin.

Key Features

• Voltage Level Translation: Seamless translation between two different voltage nodes ranging from 0.65V to 3.6V, which is ideal for multi-voltage systems.
• High-Speed Data Transfer: Supports high-speed signal transfer with its switching speeds that are suitable for various applications, including those requiring high data rates.
• Low Power Consumption: The device is optimized for low power consumption, making it suitable for battery-operated and power-sensitive applications.
• ESD Protection: It comes with robust Electrostatic Discharge (ESD) protection, thereby enhancing the durability and longevity of the product.
• Operational Ease: With no direction control pin required, the operation is simplified, reducing the complexity of the circuit design.

Applications

The SN74AXCH2T45DCUR is versatile and can be used in a variety of applications including:

• Mobile Phones
• Personal Computers
• Tablets
• Networking Equipment
• Portable Media Players

Package and Quality

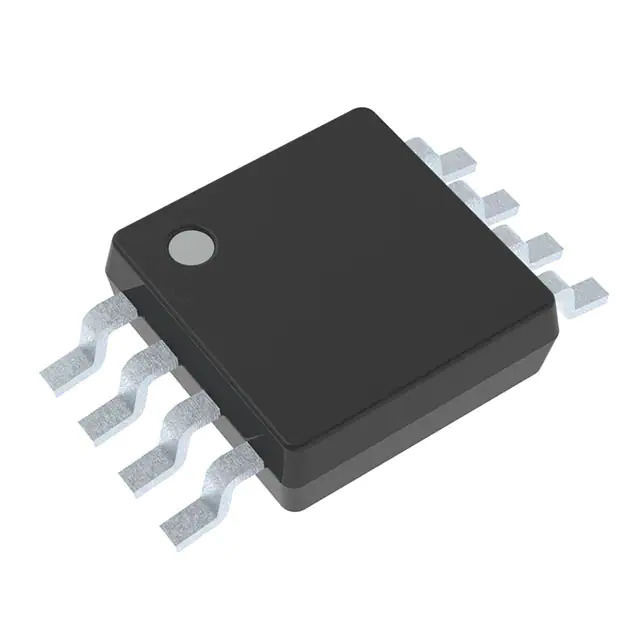

The device comes in a small-outline VSSOP (DCU) 8-pin package, which is not only space-saving but also offers excellent thermal performance. Texas Instruments ensures high-quality standards, and the SN74AXCH2T45DCUR is no exception, delivering both reliability and performance.

Conclusion

Whether you are designing a complex multi-voltage interface or simply need a reliable bus transceiver for high-speed data transfer, the SN74AXCH2T45DCUR by Texas Instruments is a solid choice. Its combination of power efficiency, high-speed operation, and ease of use makes it a valuable component in any electronic engineer’s toolkit.
