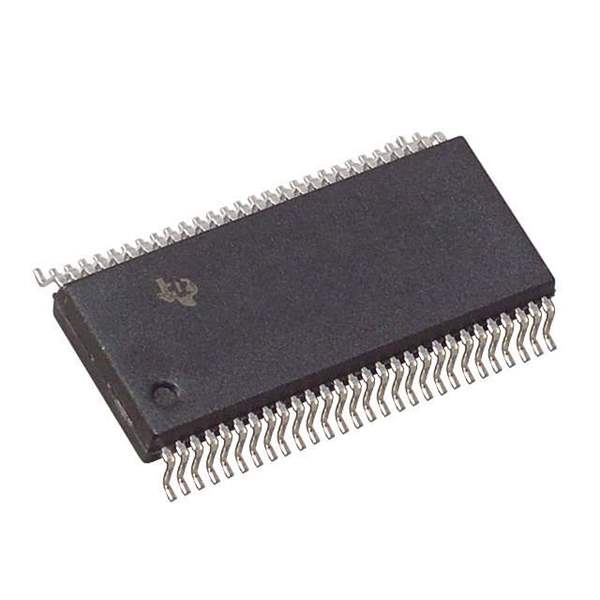

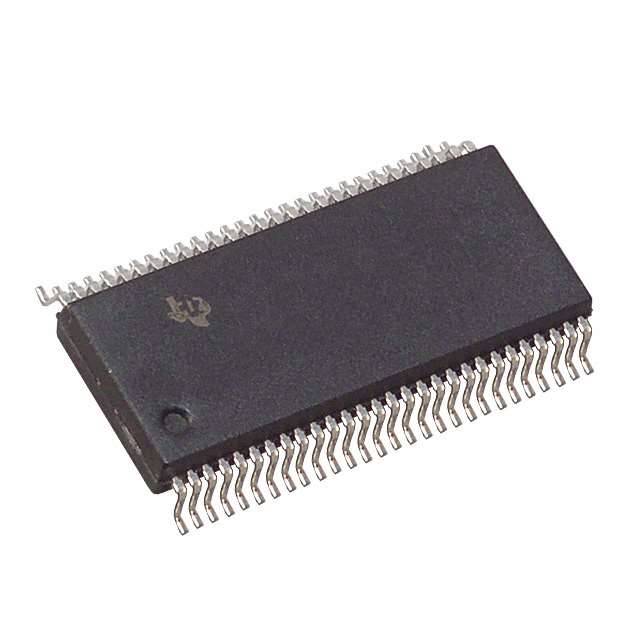

SN74CBTLV16292DLR Texas Instruments
Same model may have multiple batches, images only for reference.

SN74CBTLV16292DLR

Part No SN74CBTLV16292DLR
Manufacturer Texas Instruments
Catalog Logic - Signal Switches, Multiplexers, Decoders
Description IC LV FET MUX/DEMUX 56-SSOP
Datasheet
SN74CBTLV16292DLR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type Multiplexer/Demultiplexer
Independent Circuits 1
Voltage Supply Source Single Supply
Supply Voltage - Operating 2.3 V to 3.6 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 56-SSOP
Win Source Part Number 145029-SN74CBTLV16292DLR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SN74CBTLV16292DLR CAD Model

Description

The SN74CBTLV16292DLR is a high-performance, cutting-edge integrated circuit from Texas Instruments, a leading semiconductor manufacturing company.

  • Type: 24-bit FET bus-exchange switch
  • Feature: Dedicated output-enable (OE) input
  • Feature: 5-V tolerant level shifting
  • Feature: Low On-State resistance characteristics
  • Feature: Bidirectional analog and digital voltage translation
  • Latch-Up Performance: Exceeding 250 mA as per the JESD 17 standard
  • Feature: Ioff support
  • Package: Surface-mount SSOP (DB)
  • Operating Temperature: -40°C to 85°C
  • Compliance: RoHS and Green standards
