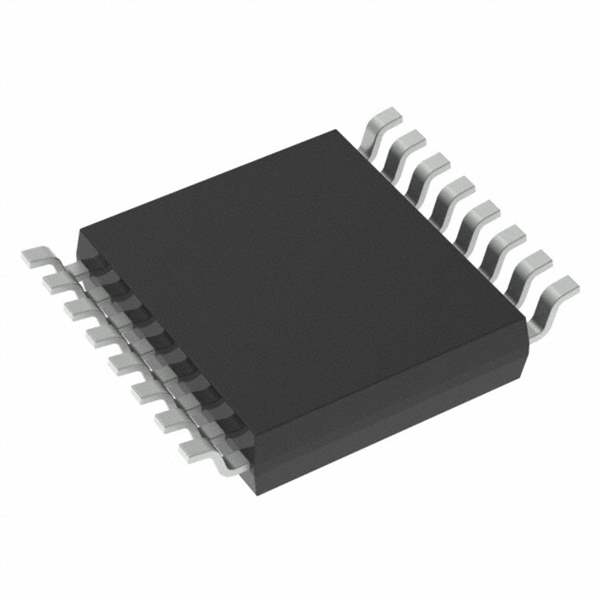

The SN74HCS259QPWRQ1 is a high-quality integrated circuit from Texas Instruments, designed for automotive and industrial applications. This particular device is an 8-bit addressable latch, which is part of TI's robust HCS family of logic devices. It combines the functions of the 74HCT259 devices with the added benefits of a wider voltage range and improved performance.

Key Features

• Addressable Latch: The device includes eight latches with three binary select inputs (A, B, and C) and both an active-LOW enable (G) input and an active-HIGH clear (CLR) input.
• Wide Operating Voltage Range: It operates from 4.5 V to 5.5 V, making it suitable for interfacing with 5-V microprocessors in automotive environments.
• High Current Drive: The SN74HCS259QPWRQ1 is capable of driving high current loads, with outputs that can sink up to 8 mA at 5 V.
• Low Power Consumption: This device features a low power consumption, which is critical for automotive and battery-operated applications.
• Robustness: The product is designed to withstand the harsh conditions of automotive applications, with protection against over-voltage and under-voltage conditions.
• Temperature Range: It operates over a broad temperature range, from -40°C to 125°C, ensuring reliability in extreme environments.
• Package: The SN74HCS259QPWRQ1 is available in a TSSOP (Thin Shrink Small Outline Package) with 16 pins, providing a compact footprint for space-constrained applications.

Applications

The device is ideal for various applications within the automotive sector, including body control modules, engine control units, and infotainment systems. It is also well-suited for industrial applications such as factory automation, process control, and other systems requiring a robust and reliable addressable latch.

Quality and Reliability

Texas Instruments is known for their commitment to quality, and the SN74HCS259QPWRQ1 is no exception. It meets stringent automotive industry standards, including AEC-Q100 qualification, and is manufactured in facilities compliant with ISO/TS16949.
