Product Overview: SN74LVC1G04QDCKRQ1 from Texas Instruments

The SN74LVC1G04QDCKRQ1 is a high-performance, single inverter gate designed by Texas Instruments, specifically tailored for automotive and other applications requiring stringent quality control and reliability. This device is part of the LVC family, which operates on a very low voltage range and is characterized by low power consumption and high drive capability, making it suitable for use in modern electronic systems.

Key Features

• Wide Operating Voltage Range: The SN74LVC1G04QDCKRQ1 operates over a wide voltage range of 1.65V to 5.5V, making it versatile for interfacing with both 3.3V and 5V logic levels.
• Low Power Consumption: This inverter gate is designed for low dynamic power consumption, contributing to energy efficiency in automotive electronics.
• High Drive Capability: Despite its low power design, the device can drive up to 24 mA at the output, allowing it to control LEDs or other low-power peripherals directly.
• ESD Protection: Enhanced Electrostatic Discharge (ESD) protection is provided on all pins to prevent damage from static electricity, ensuring robust performance in harsh environments.
• Automotive Grade: As a Q1 device, it meets the stringent requirements of the automotive industry, including enhanced device performance and reliability.

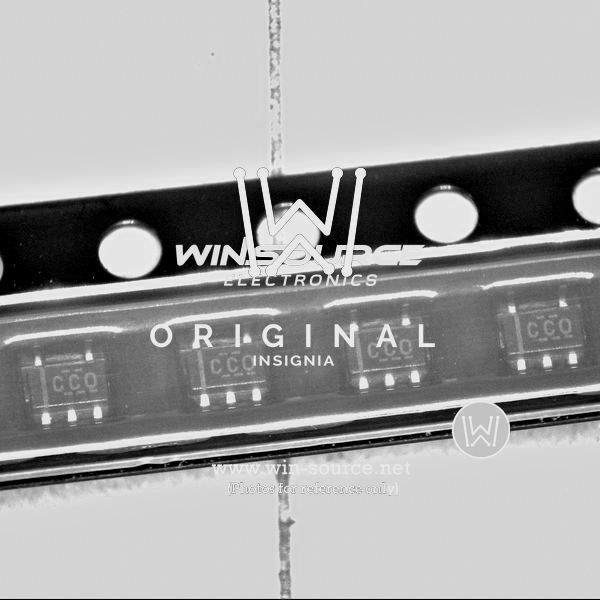

• Space-Saving Package: The SN74LVC1G04QDCKRQ1 is available in a compact 5-pin SC70 package, which is ideal for space-constrained applications.

Applications

The versatility of the SN74LVC1G04QDCKRQ1 makes it an excellent choice for a wide range of automotive applications, including:

• Engine control units
• Body control modules
• Infotainment systems
• Advanced driver-assistance systems (ADAS)

In addition to automotive systems, this inverter gate is also well-suited for other high-reliability applications such as industrial controls, telecommunication infrastructure, and portable electronics where low voltage operation and power efficiency are critical.

With its robust design and comprehensive features, the SN74LVC1G04QDCKRQ1 from Texas Instruments is a reliable and efficient solution for modern electronic circuits requiring a single inverter function.
