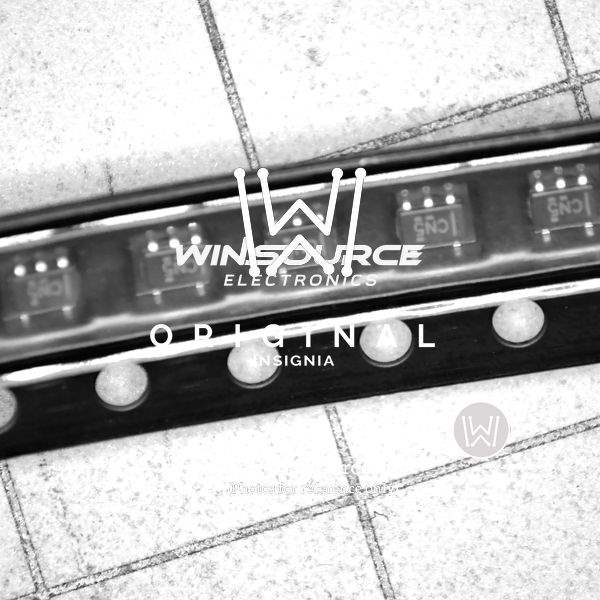

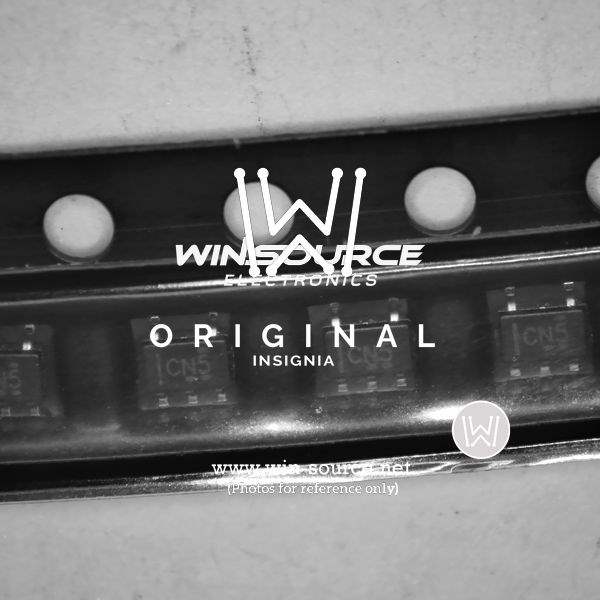

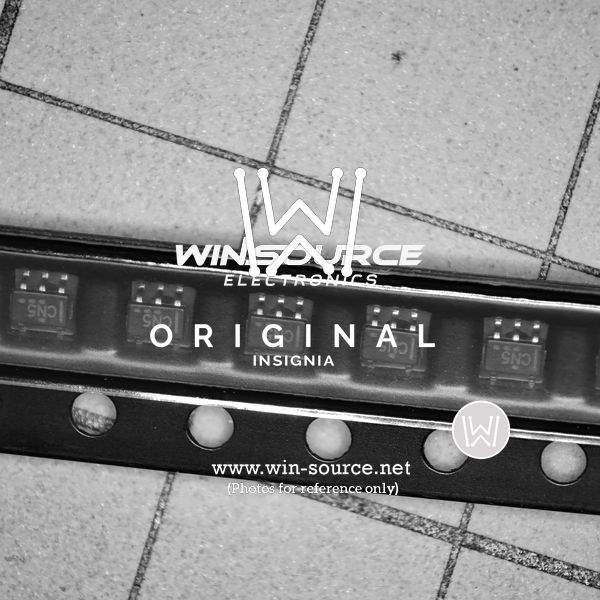

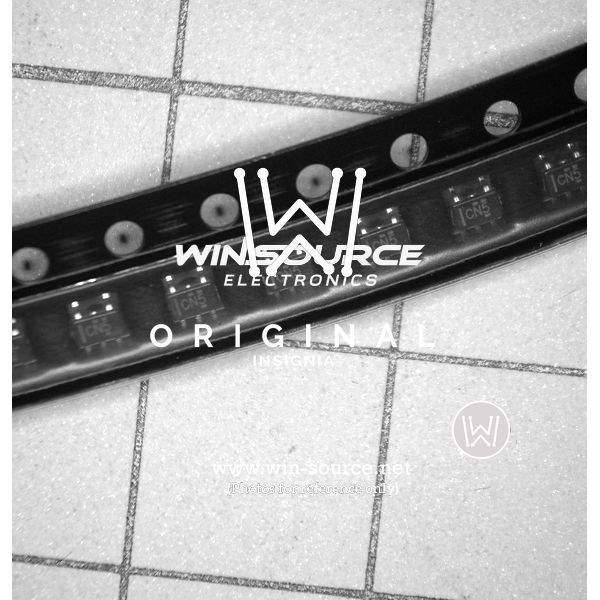

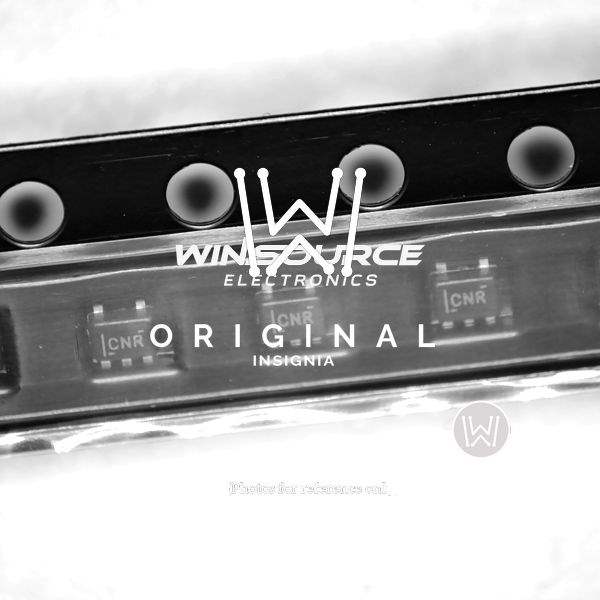

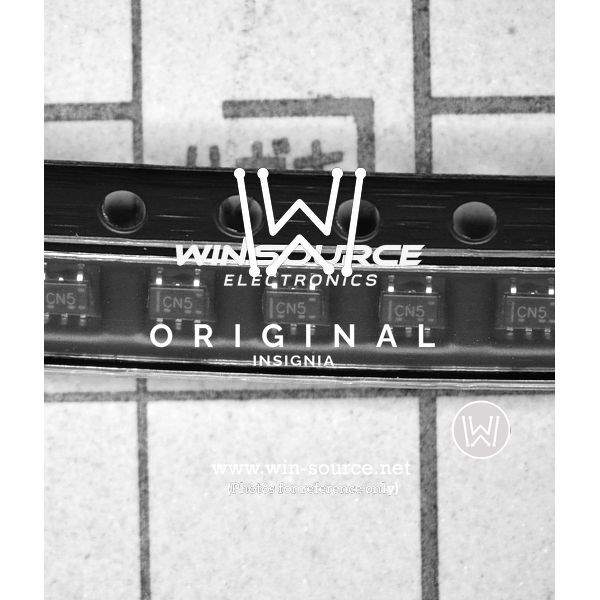

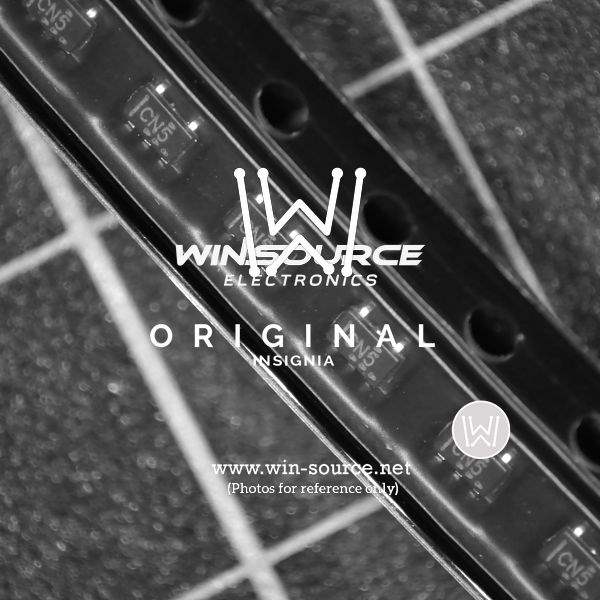

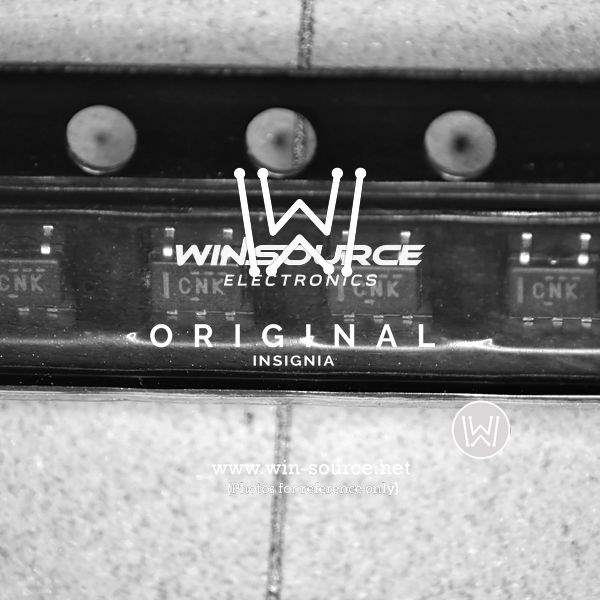

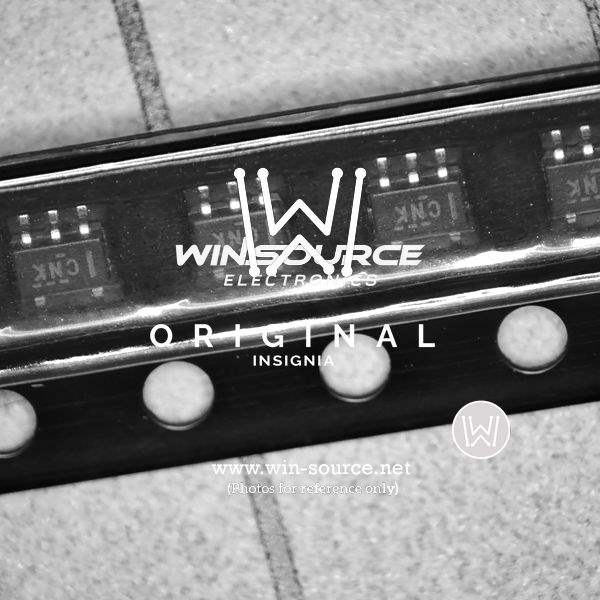

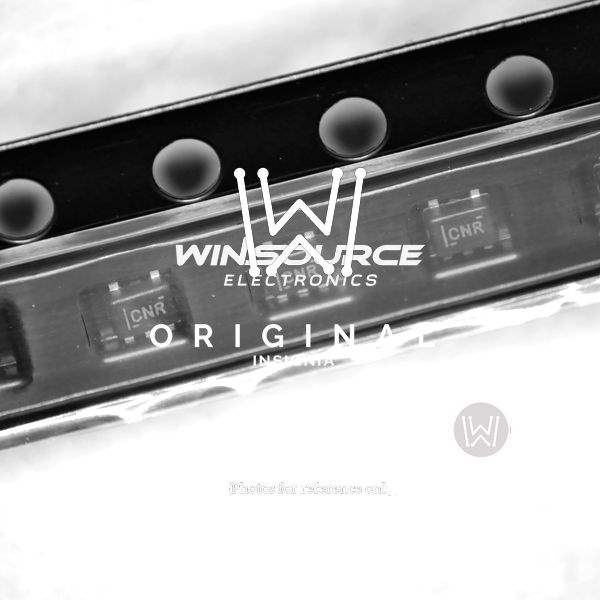

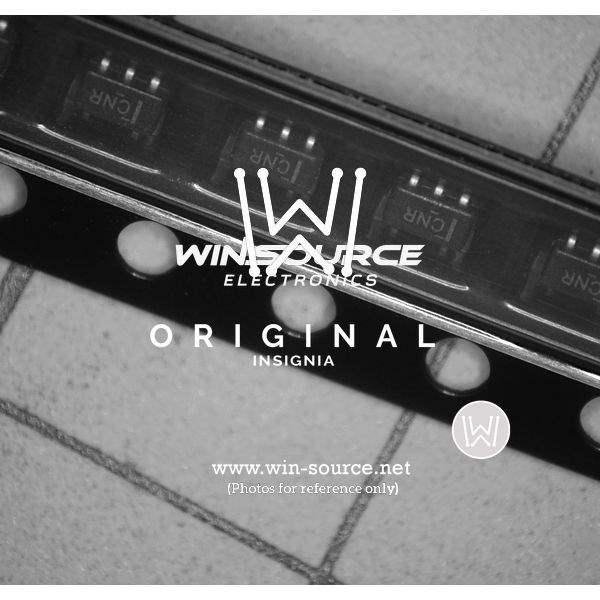

Texas Instruments SN74LVC1G126DCKR Product Description

The SN74LVC1G126DCKR is a single line driver with a 3-state output from Texas Instruments. This high-quality device is designed to have the capability to drive current up to 32mA. An essential feature of this product is its 3-state output, which is controlled by the output enable (OE) input. When OE is low, the output is in a normal data I/O state; however, when OE is high, the output is in a high impedance state.

Designed for 1.65-V to 5.5-V VCC operation, the SN74LVC1G126DCKR boasts a maximum tpd of 3.7 ns at 3.3 V, making it a highly efficient and reliable choice for various applications. It is optimized for low voltage and thus is suitable for use in low voltage and low power applications.

One of the standout features of this device is its Ioff feature which supports live insertion, partial-power-down mode, and back-drive protection. It also has a latch-up performance that exceeds 100 mA per JESD 78, Class II, making it a robust choice for demanding environments. This device is available in a variety of packages, including the small-outline transistor (SOT)(SC-70) package, making it a versatile choice for design needs.

The SN74LVC1G126DCKR is designed to be used in applications such as servers, telecom, networking, industrial, and many more. It is a testament to Texas Instruments' commitment to delivering high-quality, reliable, and efficient solutions for a wide range of needs.

For more information about the SN74LVC1G126DCKR and other Texas Instruments products, visit the Texas Instruments website.
