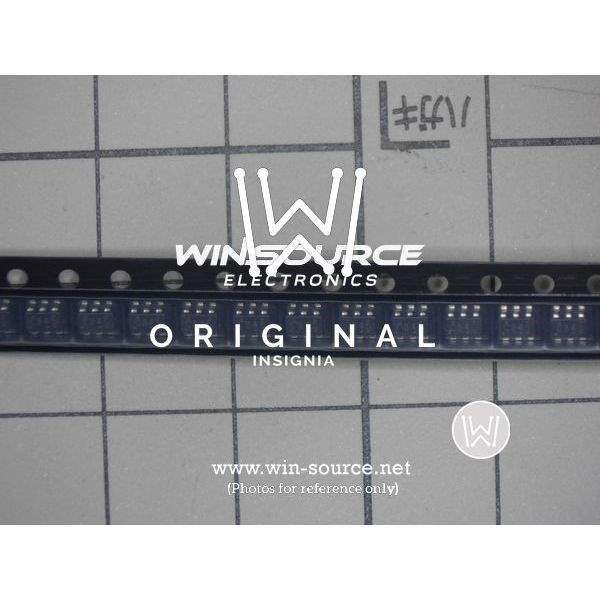

SN74LVC1G34DBVRE4 - Texas Instruments Single Buffer Gate

The SN74LVC1G34DBVRE4 is a high-performance, single-buffer gate integrated circuit from Texas Instruments, designed to address the needs of modern compact electronic systems. This versatile logic gate is part of the 74LVC family, which is renowned for its low-voltage operation and compatibility with mixed-voltage systems.

One of the key features of the SN74LVC1G34DBVRE4 is its wide operating voltage range of 1.65V to 5.5V. This makes it suitable for interfacing with both 3.3V and 5V logic levels, allowing for seamless integration into various system architectures without the need for additional level-shifting components. The device is optimized for low-voltage applications, which is particularly beneficial for battery-powered and portable devices where power efficiency is critical.

The buffer gate comes in a compact SOT-23-5 package, which is ideal for space-constrained applications. Its small footprint allows for high-density mounting on printed circuit boards (PCBs), contributing to the miniaturization of electronic products. Despite its small size, the SN74LVC1G34DBVRE4 delivers robust performance with its high drive strength, which can source or sink up to 32mA at the output, providing good signal integrity even in demanding applications.

Another advantage of this device is its support for 5V tolerant inputs, which enables it to be used in mixed-voltage environments without the risk of damage from higher voltage levels. This feature simplifies design considerations and enhances the flexibility of the system design.

The SN74LVC1G34DBVRE4 also boasts a low static power consumption, with a typical ICC of only 10 µA, contributing to overall energy savings. Its fast switching characteristics, with propagation delays typically less than 3.4 ns at 3.3V, ensure that it can meet the timing requirements of high-speed digital systems.

Overall, the SN74LVC1G34DBVRE4 from Texas Instruments is a highly reliable and efficient solution for designers looking to incorporate a single-buffer gate into their electronic systems. Its compatibility with various logic levels, low power consumption, and small package size make it an excellent choice for a wide range of applications, including portable devices, computing, consumer electronics, and more.
