The SN74LVC2G66YZTR by Texas Instruments is a high-performance, dual single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. This makes it suitable for use in a variety of applications, ranging from portable electronics to power management systems. The device is part of the LVC family, which is known for its low-voltage operation and low power consumption.

Key Features

• Versatile Voltage Range: With an operating range of 1.65 V to 5.5 V, the SN74LVC2G66YZTR is versatile enough to be used in systems with different power requirements.
• Low Power Consumption: The device features low power consumption, which is critical for battery-powered applications.
• High Speed: The switch provides high-speed switching, which is essential for applications requiring fast response times.
• Bidirectional Signal Flow: Signal flow can be bidirectional, making the device flexible for various signal routing needs.
• Low On-State Resistance: The low on-state resistance ensures minimal signal distortion and power loss.
• ESD Protection: The device includes electrostatic discharge (ESD) protection, safeguarding the device from potential damage during handling and operation.

Applications

The SN74LVC2G66YZTR is suitable for a wide range of applications, including but not limited to:

• Signal routing and multiplexing
• Power management systems
• Portable electronics
• Communication systems
• Data acquisition systems

Package and Quality

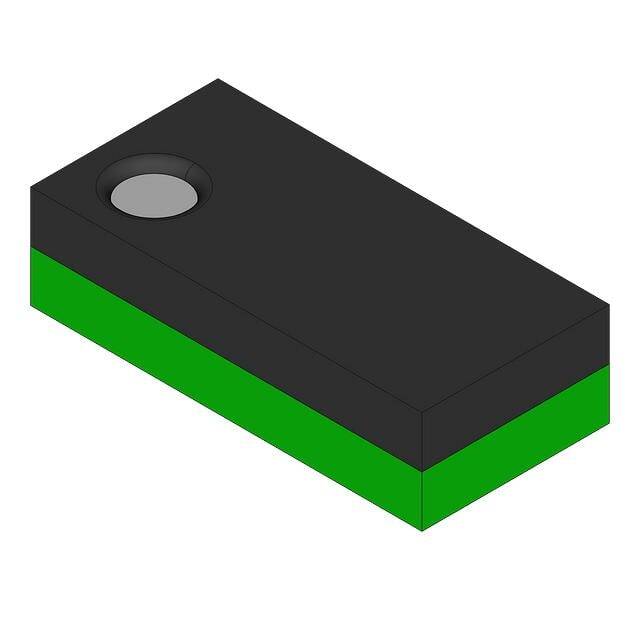

The device comes in a compact DSF package, which is highly space-efficient, making it ideal for applications where board space is at a premium. Additionally, the SN74LVC2G66YZTR is part of Texas Instruments' commitment to quality and reliability, ensuring that it meets the stringent requirements for industrial and commercial use.
