SN74LVCH16240ADGGR by Texas Instruments

The SN74LVCH16240ADGGR is a high-performance, 16-bit buffer and line driver designed to facilitate the smooth transmission of data in high-speed digital systems. Manufactured by Texas Instruments, a leader in semiconductor solutions, this device is part of their LVCH series, which is renowned for its low-voltage operation and compatibility with mixed-voltage systems.

Constructed with an advanced BiCMOS technology, the SN74LVCH16240ADGGR is optimized for low-voltage applications that require a 3.3V supply. It boasts a wide operating voltage range from 2.3V to 3.6V, making it versatile for various logic level interfaces. The device is characterized for operation from -40°C to 85°C, ensuring reliable performance across a broad range of environmental conditions.

One of the key features of the SN74LVCH16240ADGGR is its support for bus hold on data inputs, which eliminates the need for external pull-up or pull-down resistors and simplifies circuit design. This feature helps maintain the last active state on the input lines when they are left open, providing stability and reducing potential data corruption.

The device has a 3-state output, which allows for connection to a bus-oriented system. This feature enables the device to either drive the bus lines with high-speed data or to be placed in a high-impedance state, thereby avoiding bus contention and allowing multiple devices to share the same bus lines.

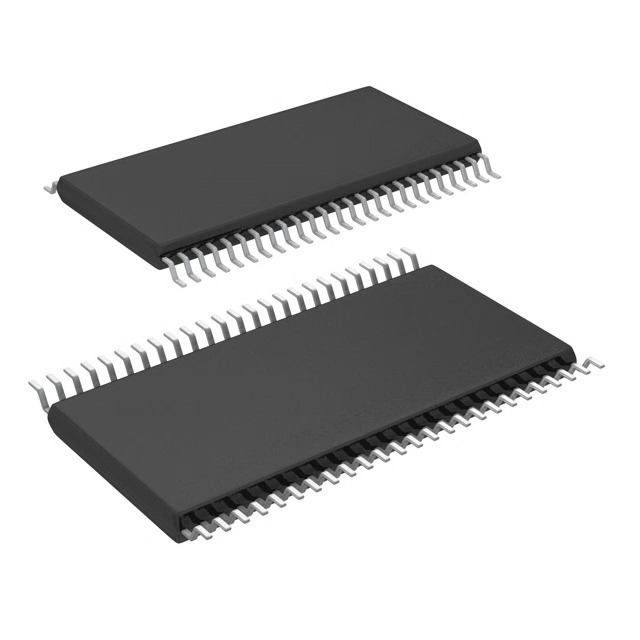

The SN74LVCH16240ADGGR comes in a TSSOP (Thin Shrink Small Outline Package) with 48 pins, providing a compact footprint for space-constrained applications while allowing for efficient thermal dissipation. The package is also designed for surface-mount technology (SMT), which facilitates streamlined manufacturing processes and robust assembly onto printed circuit boards (PCBs).

In summary, the SN74LVCH16240ADGGR from Texas Instruments is a reliable and versatile buffer and line driver that is well-suited for interfacing with high-speed digital systems. Its advanced features and robust design ensure that it is capable of meeting the demands of modern electronic applications.
