Product Overview: SNJ54ALS153W

The SNJ54ALS153W is a high-performance, dual 4-input multiplexer integrated circuit (IC) designed and manufactured by Texas Instruments (TI), a leader in semiconductor solutions. This IC is part of the advanced low-power Schottky (ALS) family, known for its exceptional speed and energy efficiency. The SNJ54ALS153W is specifically engineered to provide high-speed digital multiplexing in a wide range of applications, including data acquisition systems, avionics, military hardware, and communication infrastructures.

Key Features

• Logic Type: Dual 4-Input Multiplexer

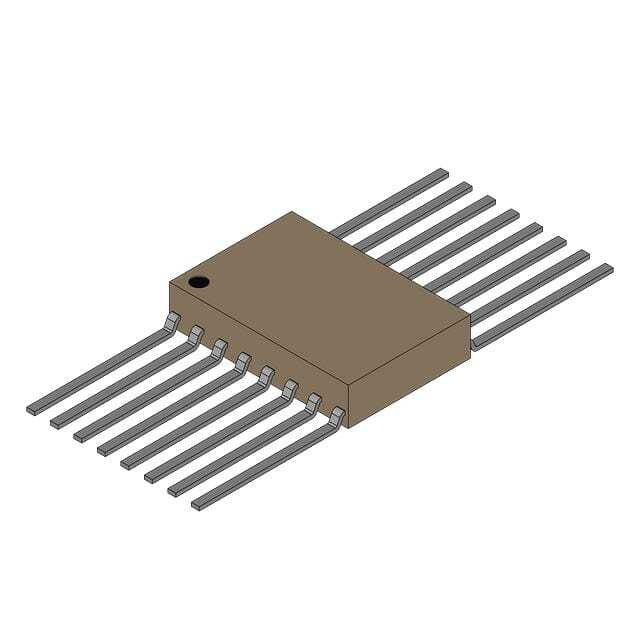

• Package / Case: Ceramic Flatpack
• Operating Temperature Range: -55°C to 125°C, making it suitable for military and aerospace applications.
• Logic Family: ALS - Advanced Low-Power Schottky
• Supply Voltage: Typically 5V, with a wide range allowing for flexible usage in various circuits.
• Propagation Delay Time: Fast switching speeds, ensuring quick response times in critical applications.

Product Description

The SNJ54ALS153W features two individual 4-input multiplexers with common select inputs and separate enable inputs. Its select inputs determine which of the four binary inputs is routed to the output, providing a versatile way to funnel multiple data lines through a single channel. The enable inputs serve to control the operation of the multiplexer, allowing the user to effectively manage the flow of data within the system.

This IC is designed with TI's advanced Schottky technology, which is instrumental in minimizing power consumption while maximizing switching speeds. This balance of power efficiency and performance makes the SNJ54ALS153W an excellent choice for power-sensitive and high-speed applications.

With its robust ceramic packaging, the SNJ54ALS153W offers enhanced durability and reliability, standing up to harsh environmental conditions and ensuring stable operation over a broad temperature range. This characteristic makes it an ideal component for use in systems that must operate reliably in extreme conditions.

In summary, the SNJ54ALS153W from Texas Instruments is a versatile and efficient solution for digital multiplexing needs, offering fast operation, low power consumption, and high reliability in a range of demanding applications.
