Introducing the TL16C754BPN Quad UART with 64-Byte FIFO

The TL16C754BPN is a high-performance quad Universal Asynchronous Receiver/Transmitter (UART) from the renowned semiconductor manufacturer Texas Instruments. This integrated circuit is designed to meet the demanding requirements of today's advanced communication systems, offering a versatile solution for serial data communication.

Key Features

• Quad Channel Operation: The device features four independent UART channels, each with a 64-byte FIFO (First In, First Out) buffer to enhance data throughput and reduce CPU overhead.
• Flexible Baud Rate: Each UART channel can support baud rates up to 3 Mbps, providing the flexibility needed to support a wide range of applications and devices.
• Programmable Hardware Flow Control: Hardware flow control using RTS (Request to Send) and CTS (Clear to Send) signals ensures smooth data transmission without loss or overflow, ideal for high-speed serial communication.
• Automatic Infrared (IrDA) Encoder/Decoder: The device includes an IrDA encoder and decoder that can be programmed for the IrDA SIR (Serial Infrared) protocol, allowing for wireless data communication.
• Enhanced Features: The TL16C754BPN comes with additional features like sleep mode and software reset, which help in power management and easy initialization.

Applications

The TL16C754BPN is suitable for a variety of applications that require reliable and high-speed serial communication. It is commonly used in:

• Industrial control systems
• Point-of-sale terminals
• Networking equipment
• Telecommunication systems

Package and Quality

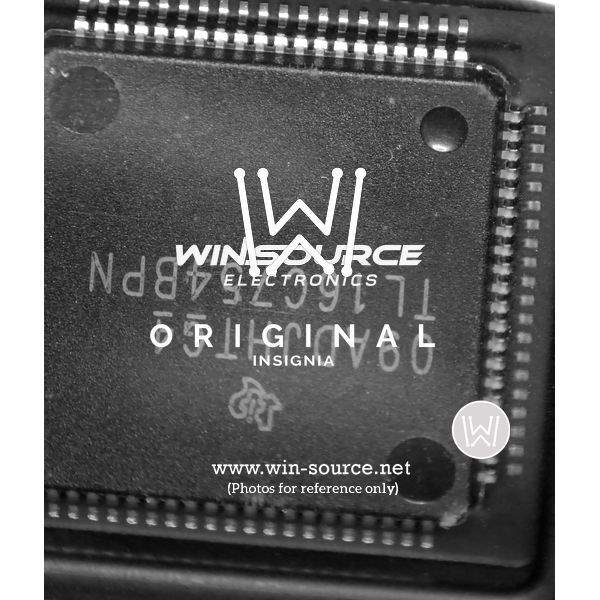

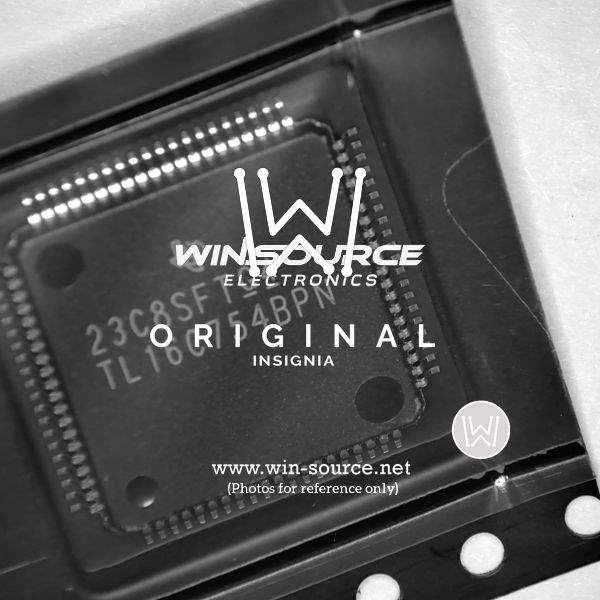

The device is offered in a 80-pin LQFP (Low Profile Quad Flat Package), ensuring compact integration into system designs. With Texas Instruments' commitment to quality, the TL16C754BPN is manufactured to the highest standards, providing robust performance and reliability for critical communication systems.

Whether you're designing a complex industrial automation system or a high-speed data acquisition platform, the TL16C754BPN from Texas Instruments is an excellent choice for your UART needs, delivering performance, versatility, and reliability.
