The TLC27M2IDR from Texas Instruments is a high-precision operational amplifier that offers a blend of features making it ideal for a wide range of applications. This dual operational amplifier is part of the LinCMOS™ family, which means it is fabricated with advanced CMOS technology to achieve low power consumption while maintaining high-speed operation and superior AC and DC performance.

Key Features:

• Low Power Consumption: The TLC27M2IDR is designed for applications that require a combination of low power and high performance. It offers a typical low supply current of 210 µA per channel, which is particularly suitable for battery-powered systems.
• Wide Supply Range: It operates from a single supply voltage ranging from 4 V to 16 V or a dual supply voltage of ±2 V to ±8 V, providing flexibility in various circuit configurations.
• High Input Impedance: The device features a high input impedance of 1012 Ω which minimizes loading on the input signal source and ensures signal integrity.
• Output Drive Capability: The TLC27M2IDR can drive loads as low as 2 kΩ connected to ground, making it compatible with a variety of components in the signal chain.
• Offset Voltage: It has a typical input offset voltage of 500 µV, which can be further reduced with external nulling if required.
• Temperature Range: The operational amplifier is designed to operate over an extended industrial temperature range of -40°C to 85°C.

Applications:

The TLC27M2IDR is versatile and can be used in a multitude of applications that require precision and efficiency. Common applications include transducer amplifiers, DC gain blocks, and all the conventional op-amp circuits which can now be more easily implemented in single power supply systems.

Package and Quality:

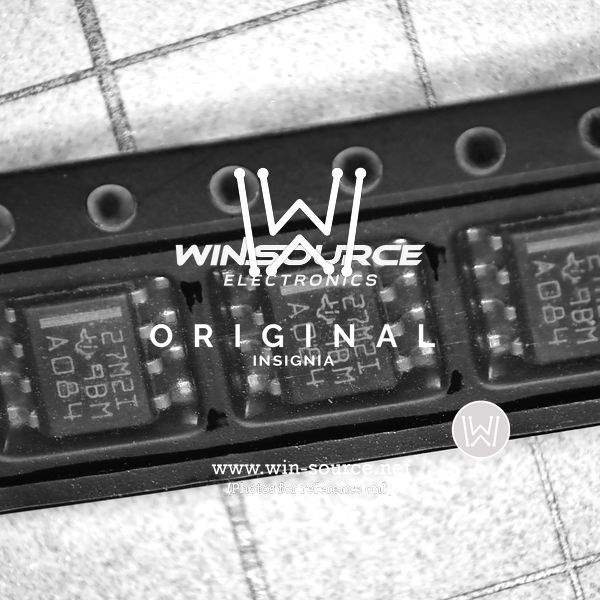

This operational amplifier comes in an 8-pin SOIC package, which is compact and suitable for space-constrained applications. Texas Instruments ensures high standards of quality and reliability for the TLC27M2IDR, making it a dependable choice for professional electronics design.
