Overview of TLK2711AIRCP from Texas Instruments

The TLK2711AIRCP is a high-speed serializer/deserializer (SerDes) product from Texas Instruments, designed to facilitate fast and reliable data transmission in a variety of demanding applications. This integrated circuit is part of the TLK2711 family and is known for its robust performance and flexibility, making it an ideal choice for communication and networking infrastructure, as well as industrial and medical equipment.

Key Features

• High Data Rate: The TLK2711AIRCP supports a wide range of data rates, from 1.6 Gbps to 2.5 Gbps, making it versatile for different high-speed data transmission needs.
• Signal Integrity: With built-in equalization and de-emphasis features, this SerDes ensures excellent signal integrity even over long cable lengths or through challenging transmission media.
• Low Power Consumption: Designed for efficiency, it operates with a low power consumption, which is crucial for minimizing heat generation and energy costs in high-performance systems.
• Hot-Plug Protection: The device includes hot-plug protection to prevent damage during cable insertion or removal when the system is powered on.
• Flexibility: It comes with a variety of programmable features, such as loopback modes and output swing control, to cater to specific application requirements.
• Reliability: The TLK2711AIRCP is built to meet the high-reliability standards expected in industrial and networking applications, ensuring stable operation under various conditions.

Applications

The versatility of the TLK2711AIRCP makes it suitable for a broad range of applications, including:

• High-speed data communications for networking equipment like routers and switches.
• Backplane interconnects in data centers and telecommunication systems.
• High-definition video transmission for medical imaging and industrial inspection systems.
• Any application requiring high-speed point-to-point data links.

Product Specifications

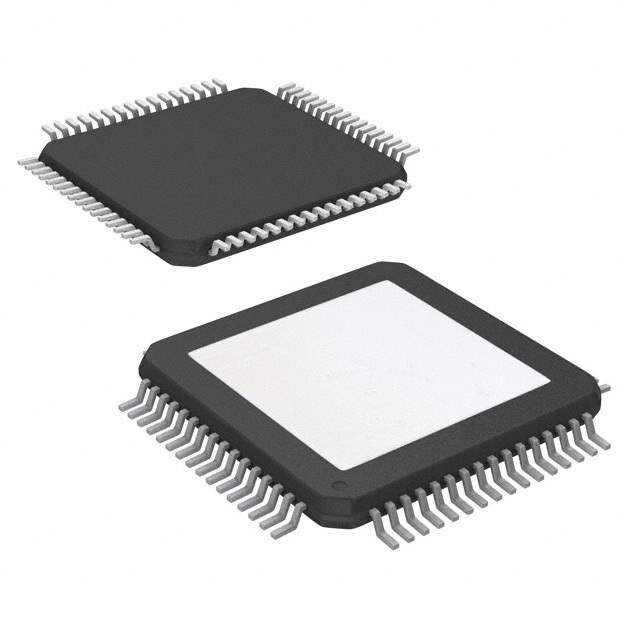

The TLK2711AIRCP comes in a compact 64-pin QFP (Quad Flat Package) and is designed to operate over an industrial temperature range. It interfaces with LVPECL (Low Voltage Positive Emitter Coupled Logic) on the high-speed side and LVCMOS/LVTTL (Low Voltage CMOS/Transistor-Transistor Logic) on the parallel side, providing a convenient bridge between different logic families.

With its exceptional performance and reliability, the TLK2711AIRCP from Texas Instruments stands out as a top-tier solution for high-speed data transmission challenges across various industries.
