Product Overview: TLV431AIDBZRG4

The TLV431AIDBZRG4 is a precision low-voltage shunt voltage reference from Texas Instruments, designed for use in a variety of applications where accuracy and stability are of paramount concern. This device offers a low dynamic impedance and a stable reverse breakdown voltage, making it a reliable choice for voltage regulation and reference purposes.

Key Features

• Precision Reference: This component features a typical output voltage of 1.25V, with the precision necessary for critical circuit operations.
• Low Voltage Operation: Designed to operate at low voltages, it can function at a minimum cathode voltage of just 1.24V, which is ideal for portable and battery-powered applications.
• Adjustable Output: The output voltage can be set to any value between Vref (approximately 1.24V) and 6V with the use of external resistors, offering flexibility for various design needs.
• Temperature Stability: Exhibits excellent stability over the entire industrial temperature range, ensuring consistent performance under varying conditions.
• Low Dynamic Impedance: The dynamic impedance is low, which enhances the overall performance of the voltage reference in a circuit.

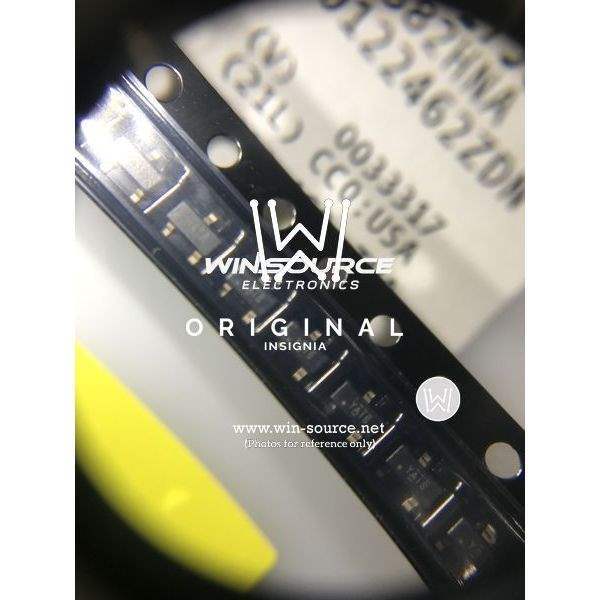

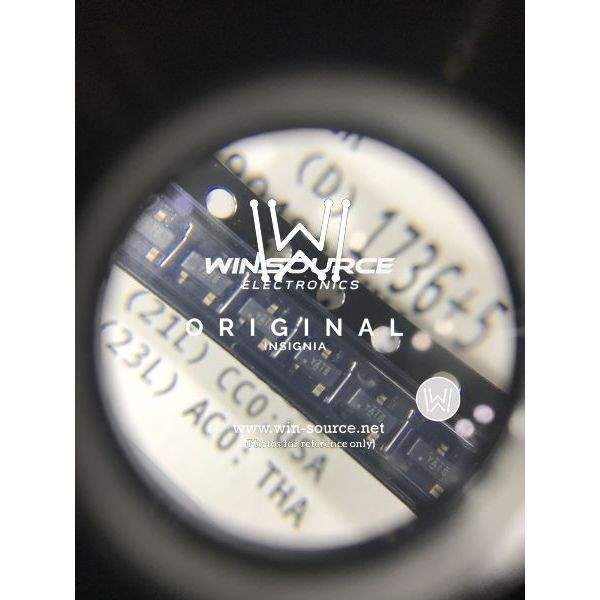

• Package: The device is available in a small outline transistor (SOT-23) package, which is suitable for space-constrained applications.

Applications

The TLV431AIDBZRG4 is versatile and can be used in a wide array of applications, including:

• Portable and battery-powered electronics
• Power supplies
• Notebook computers
• Data acquisition systems
• Instrumentation
• Consumer electronics

Quality and Reliability

As a product of Texas Instruments, the TLV431AIDBZRG4 is manufactured to high-quality standards, ensuring reliability and performance consistency. It is designed to meet the rigorous demands of industrial and commercial applications, providing designers with a dependable voltage reference solution.
