TLV70433DBVR Voltage Regulator by Texas Instruments

The TLV70433DBVR is a high-quality, low-dropout (LDO) voltage regulator designed and manufactured by Texas Instruments (TI), a leader in semiconductor solutions. This compact and efficient component is specifically engineered to deliver a fixed output voltage of 3.3V, which is essential for stabilizing and powering various electronic circuits.

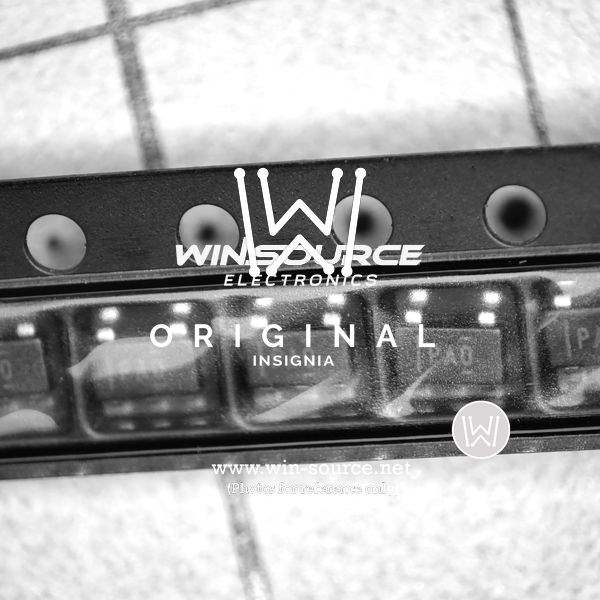

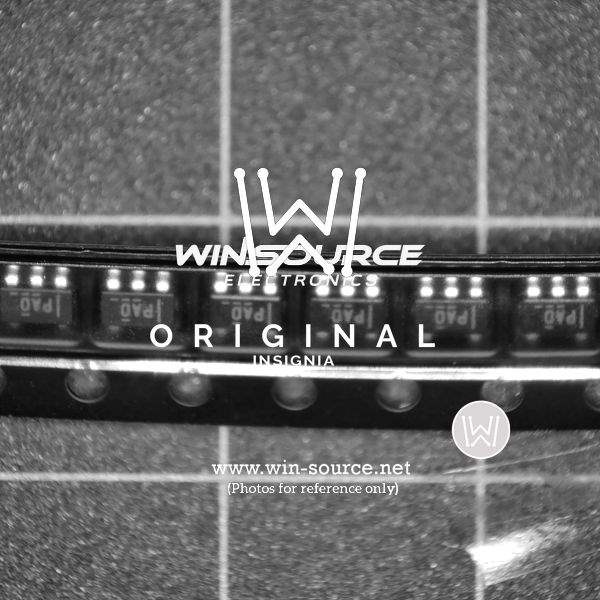

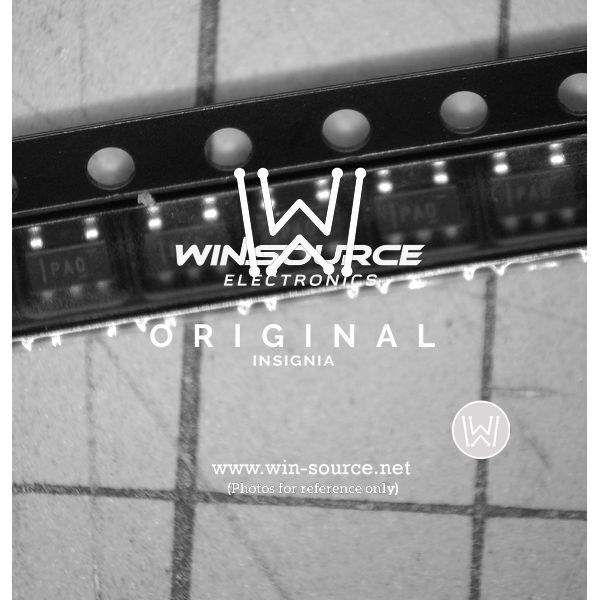

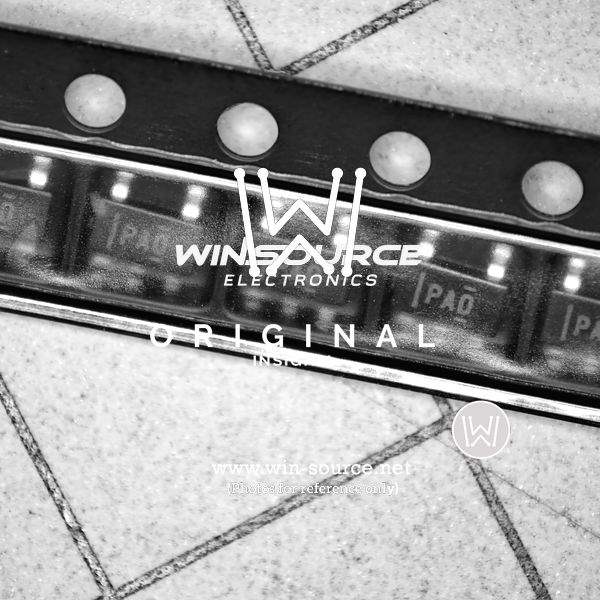

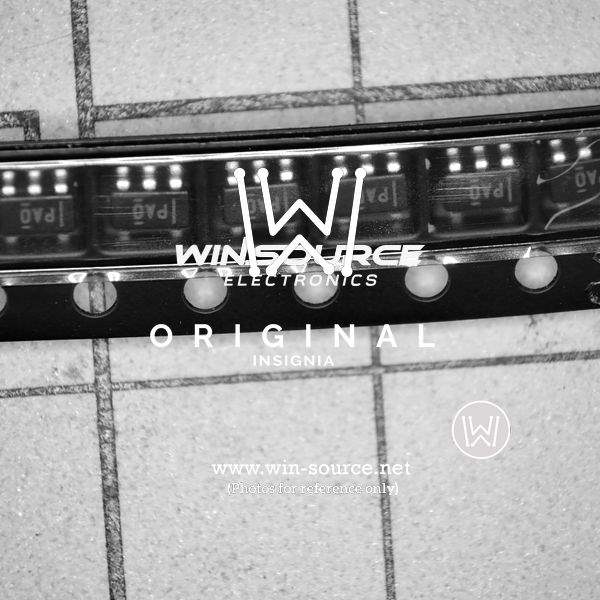

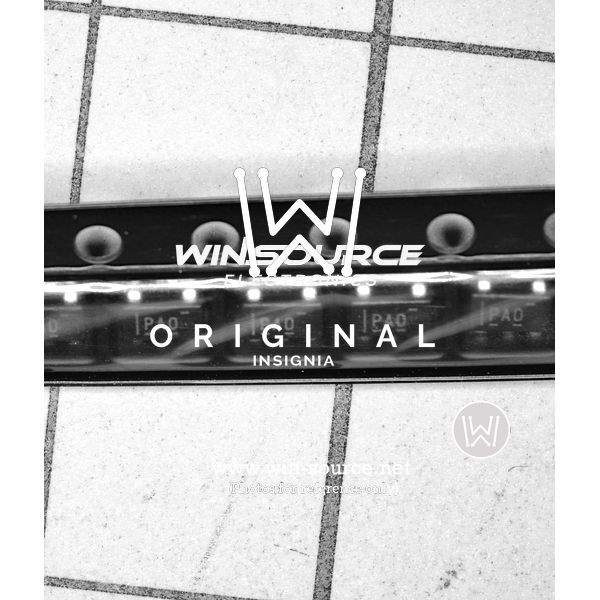

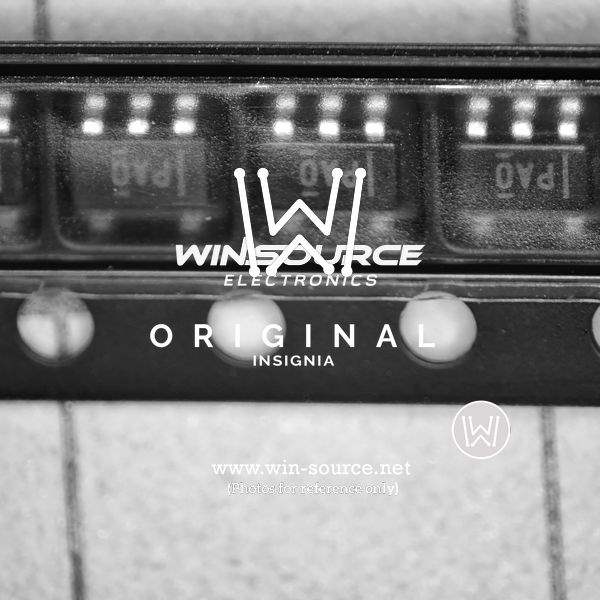

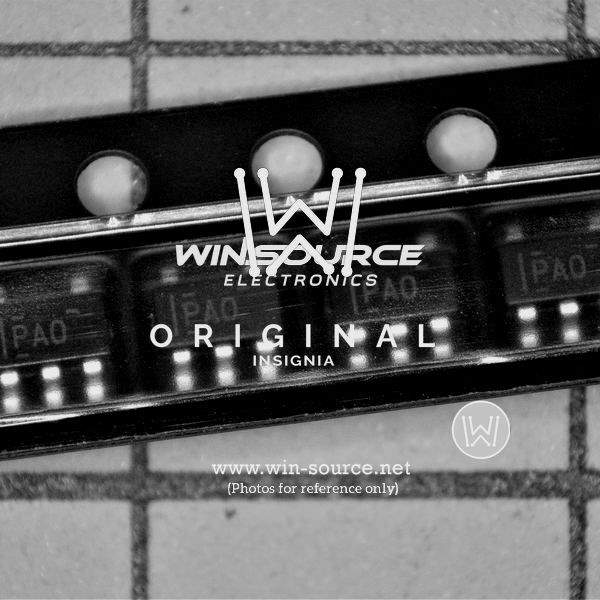

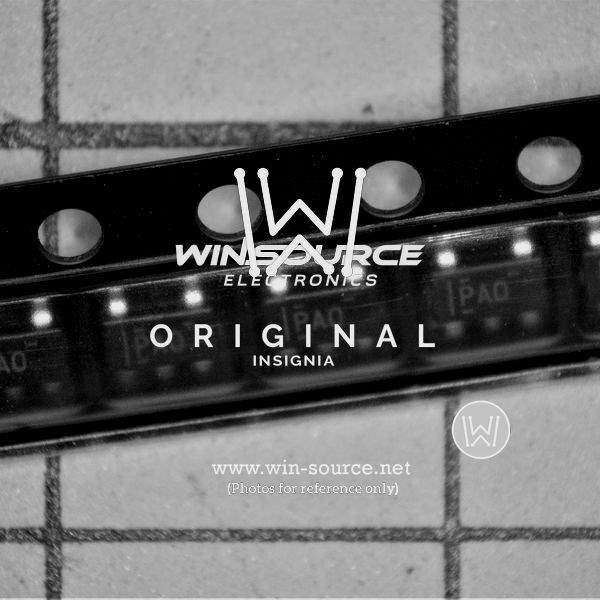

The TLV70433DBVR comes in a small SOT-23-5 package, making it an ideal choice for space-constrained applications. Despite its diminutive size, it boasts a high accuracy output with low quiescent current, which is beneficial for battery-powered devices and applications that require long-term energy efficiency.

This voltage regulator can support a maximum input voltage of up to 24V, providing a wide range of flexibility for various input sources. It has a maximum output current of 150mA, suitable for low-power applications such as microcontrollers, sensors, and other small-scale integrated circuits.

Safety and reliability are key features of the TLV70433DBVR. It includes built-in thermal shutdown and overcurrent protection, ensuring the device and the system it powers are safeguarded against excessive heat and current conditions. Additionally, the regulator has a low dropout voltage, which allows it to continue to regulate the output voltage even when the supply voltage is very close to the output voltage, thereby maximizing battery life in portable applications.

The TLV70433DBVR is characterized for operation over a broad temperature range of –40°C to 125°C, which makes it versatile for industrial and automotive applications that may experience extreme operating environments.

In summary, the TLV70433DBVR from Texas Instruments is a robust, high-performance LDO voltage regulator that offers a fixed 3.3V output, low quiescent current, and a wide input voltage range, all within a compact package. Its protection features and wide operating temperature range make it a reliable choice for a myriad of applications.
