Overview of Texas Instruments TLV70536YFMR

The Texas Instruments TLV70536YFMR is a high-performance, low-dropout (LDO) voltage regulator designed to deliver a fixed output voltage of 3.6V with an input voltage range from 2.5V to 5.5V. This device is capable of supplying an output current of up to 200mA, making it an ideal choice for power-sensitive applications. Its small form factor and high level of accuracy (+/-2%) are suitable for portable electronics, including wearables, smartphones, and medical devices.

Key Features

• High Accuracy: The TLV70536YFMR offers a high level of voltage accuracy, maintaining a steady 3.6V output with a precision of +/-2%.
• Low Dropout: With a low dropout voltage, this LDO can operate closer to the input voltage, maximizing efficiency and battery life in portable applications.
• Current Capacity: Capable of delivering up to 200mA, it can power a wide range of components and circuits.
• Stable Operation: The device is stable with low equivalent series resistance (ESR) capacitors, ensuring reliable performance across various load conditions.
• Power Saving: It features a low quiescent current, which is ideal for battery-powered devices where power conservation is crucial.
• Thermal Protection: The TLV70536YFMR includes built-in thermal shutdown and overcurrent protection, safeguarding the device and the system from damage due to overheating and excessive load conditions.

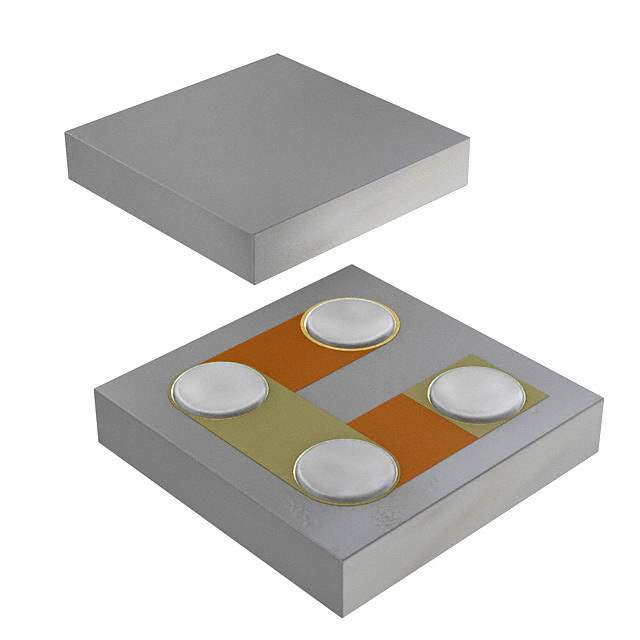

• Small Package: Available in a tiny DSBGA package, it takes up minimal board space, which is essential in compact electronic designs.

Applications

The TLV70536YFMR is versatile and can be used in a variety of applications, including:

• Portable and battery-powered devices
• Smartphones and tablets
• Wearables and fitness trackers
• Healthcare and medical equipment
• Wireless communication systems
• Power management modules

With its combination of high accuracy, low power consumption, and small size, the TLV70536YFMR from Texas Instruments is an excellent choice for designers who require a reliable and efficient voltage regulation solution.
