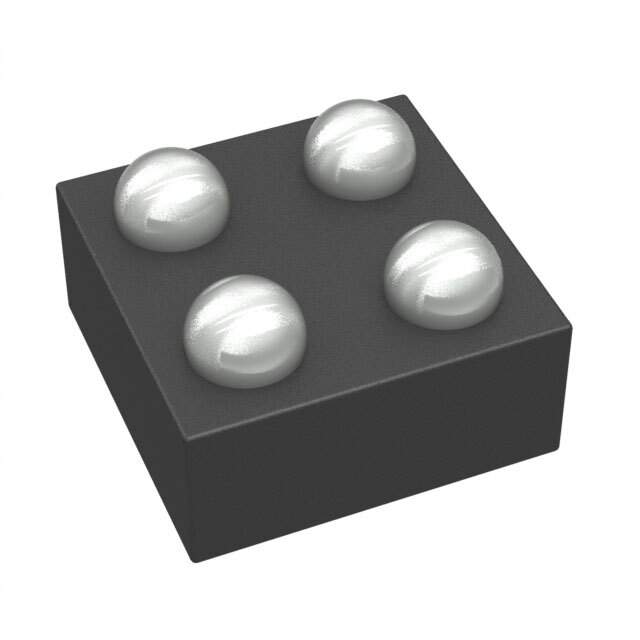

TLV70536YFPR

Part No TLV70536YFPR
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description Thermal Shutdown and Overcurrent Protection
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Texas Instruments
Packaging Reel - TR
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage Input MAX 5.5V
Output Voltage 3.6V
Voltage Dropout (Maximum) 0.25V @ 200mA
Output Current 200mA
Operating Supply Current 55μA ~ 315μA
PSRR 80dB ~ 55dB (10kHz ~ 1MHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Operating Temperature Range -40°C ~ 125°C
Mounting SMD
Package 4-XFBGA, DSBGA
Manufacturer Package 4-DSBGA (0.8x0.8)
Win Source Part Number 1270572-TLV70536YFPR
Manufacturer Homepage www.ti.com
Family Name TLV705
Introduction Date December 10, 2012
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2028
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TLV70536YFPR CAD Model

Description

Introducing the TLV70536YFPR from Texas Instruments

The TLV70536YFPR is a cutting-edge, low-dropout (LDO) voltage regulator designed by Texas Instruments to meet the rigorous demands of modern electronic devices. This highly efficient component ensures a stable and reliable power supply, making it an ideal choice for a wide array of applications, including portable electronics, wearables, and smart sensors.

Key Features

  • Output Voltage: The TLV70536YFPR offers a fixed output voltage of 3.6V, providing a steady and precise voltage for sensitive electronics.
  • High Accuracy: It maintains an impressive 2% accuracy over temperature, line, and load variations, ensuring device performance remains consistent under different operating conditions.
  • Low Dropout: With a very low dropout of only 250mV at 200mA, it supports operations close to the supply voltage, maximizing battery life in portable applications.
  • Current Rating: The device can supply up to 200mA of output current, which is suitable for a range of low-power devices and applications.
  • Power-Saving Modes: It features an active PFM mode for improved efficiency at low output currents, which greatly extends battery life when the device is in idle or standby mode.
  • Thermal Performance: The TLV70536YFPR is designed with excellent thermal performance in mind, ensuring it operates within safe temperature ranges even under full load conditions.
  • Small Package: Available in a compact 2.00 mm x 1.20 mm DSBGA package, it saves valuable board space and is ideal for space-constrained applications.

Applications

The TLV70536YFPR is versatile and can be used in various applications, such as:

  • Mobile Phones
  • Bluetooth Headsets
  • Portable Media Players
  • Handheld Medical Equipment
  • Smart Meters
  • IoT Devices

With its excellent power supply rejection ratio (PSRR) and fast start-up time, the TLV70536YFPR from Texas Instruments is engineered to enhance system stability and performance. Its robust design and high reliability make it a go-to solution for engineers looking to improve power efficiency and prolong battery life in their designs.

For detailed specifications and application guidance, Texas Instruments provides comprehensive technical documentation, ensuring that integrating the TLV70536YFPR into your design is a smooth and well-supported process.
