The TLV76701DGNR is a high-performance, positive-voltage linear regulator offered by Texas Instruments, a leader in semiconductor solutions. This regulator is designed to provide a stable and reliable power supply for a wide range of applications, including industrial, automotive, and consumer electronics.

Key Features

• Output Voltage Range: The TLV76701DGNR provides an adjustable output voltage range from 1.25V to 15V, which is suitable for various electronic devices requiring different voltage levels.
• High Output Current: It is capable of delivering up to 1A of continuous output current, ensuring sufficient power for even demanding applications.
• Low Dropout Voltage: The low dropout voltage (LDO) feature enables the regulator to maintain output voltage regulation with a minimal difference between the input and output voltages, making it highly efficient in battery-powered applications.
• Thermal Shutdown and Overcurrent Protection: Built-in safety features protect the device and the system from damage due to excessive temperature or current conditions.
• Stable with Low-ESR Output Capacitors: The TLV76701DGNR remains stable with ceramic output capacitors as low as 10µF, offering flexibility in design and reducing overall component cost.

Package and Availability

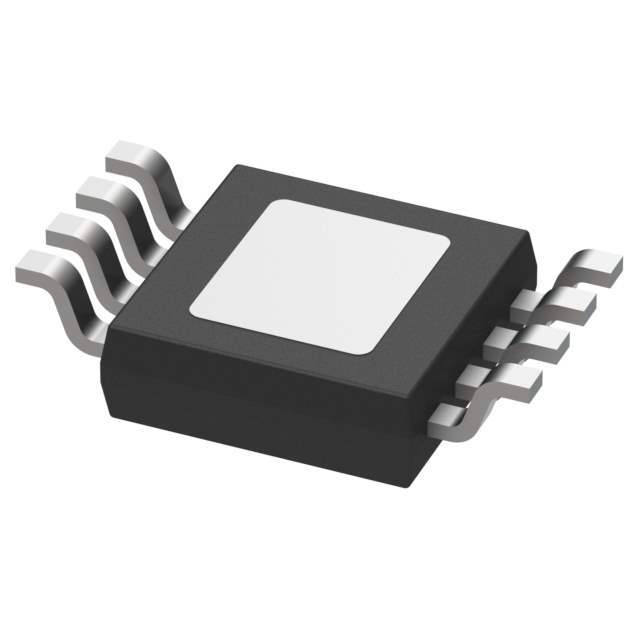

Packaged in an eco-friendly 8-pin MSOP PowerPAD™, the TLV76701DGNR not only saves space but also enhances thermal performance. This package is optimal for compact and high-density circuit designs. The device is RoHS compliant and is available for purchase through Texas Instruments' distribution network.

Applications

The versatility of the TLV76701DGNR makes it an ideal choice for a variety of applications, including:

• Power supplies for microcontrollers and analog ICs
• Post-regulation for switching power supplies
• Battery-powered equipment
• Automotive electronics
• Industrial control systems
