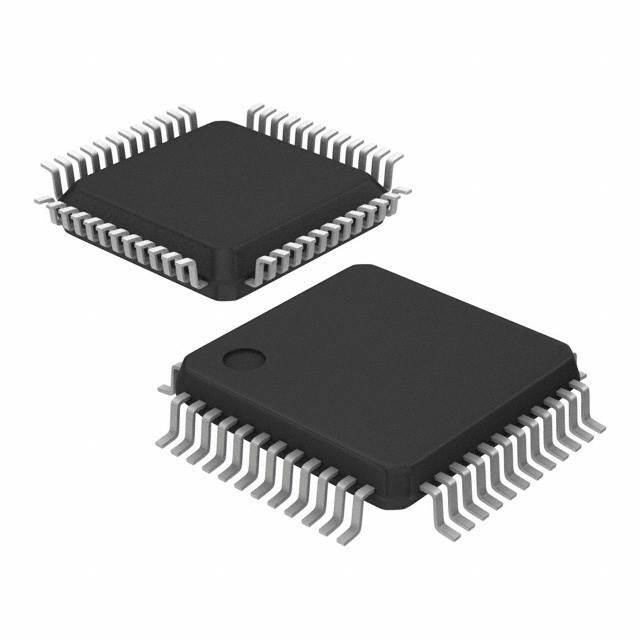

TM4C123BH6PM Microcontroller Overview

The TM4C123BH6PM microcontroller is a high-performance ARM Cortex-M4F based MCU produced by Texas Instruments, designed to meet the demanding requirements of embedded systems in industrial, automotive, and consumer applications. This microcontroller is well-suited for those who require a perfect blend of power efficiency, processing capabilities, and advanced features in their projects or products.

Key Features

• Core: The TM4C123BH6PM is built around a 32-bit ARM Cortex-M4F core with a floating-point unit (FPU) that operates at up to 80 MHz, providing efficient computation for both integer and floating-point operations.
• Memory: It comes equipped with 256KB of Flash memory and 32KB of SRAM, ensuring ample space for application code and data storage.
• Digital and Analog Peripherals: The device includes a rich set of peripherals such as GPIOs, timers, UARTs, SPI/I2C modules, and analog-to-digital (ADC) and digital-to-analog (DAC) converters, offering versatile interfacing options.
• Advanced Features: Advanced features include USB 2.0 device/host/OTG capabilities, PWM outputs, and a multitude of serial communication interfaces. It also has a wide range of motion control peripherals, making it ideal for motor control applications.
• Power Management: The MCU provides a variety of power-saving modes, which make it possible to optimize power consumption according to the application's needs.
• Robust Security: Security features such as hardware encryption and a random number generator ensure secure data transfer and storage.
• Development Support: Texas Instruments offers extensive support for the TM4C123BH6PM microcontroller, including development kits, software libraries, and the TivaWare for C Series software suite, which simplifies programming and reduces time to market.

Applications

The TM4C123BH6PM is ideal for a wide range of applications, including but not limited to industrial control systems, automotive electronics, home automation, and portable instrumentation. Its rich feature set and high level of integration make it a go-to choice for designers looking for a reliable and flexible microcontroller solution.

Overall, the TM4C123BH6PM from Texas Instruments represents a powerful, feature-rich microcontroller that can serve as the heart of sophisticated embedded systems, delivering both performance and efficiency.
