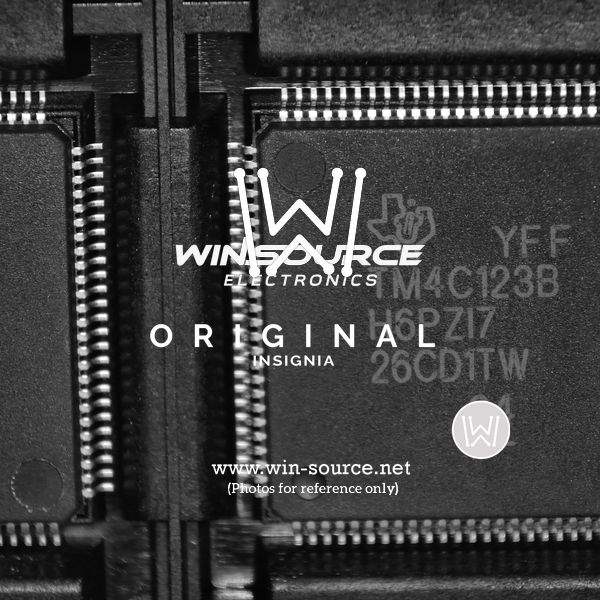

The TM4C123BH6PZI7 is a high-performance ARM Cortex-M4F based microcontroller from Texas Instruments, designed for a wide range of embedded applications. This powerful microcontroller features a 32-bit processor core with a floating-point unit (FPU) that operates at up to 80 MHz, providing ample computational power for complex algorithms and control systems.

Key Features

• Core: ARM Cortex-M4F with FPU, operating at up to 80 MHz.
• Memory: 256 KB Flash and 32 KB SRAM, allowing for robust program and data storage.
• Communication Peripherals: Includes a variety of serial communication options such as I2C, SPI, UART, and USB 2.0 OTG.
• Digital Peripherals: Up to 43 GPIO pins, PWM outputs, and multiple timers for flexible interfacing and control.
• Analog Peripherals: Equipped with 12-bit ADCs, analog comparators, and a temperature sensor for precise analog signal processing.
• Advanced Features: Integrated PLL, on-chip oscillator, and a wide range of power-saving modes.
• Package: Available in a 144-LQFP package that provides a compact footprint for space-constrained applications.

Applications

The TM4C123BH6PZI7 is suitable for an array of applications, including but not limited to:

• Industrial control systems
• Home and building automation
• Automotive and transportation
• Medical devices
• Consumer electronics

Development Support

To facilitate development, Texas Instruments provides extensive support for the TM4C123BH6PZI7 microcontroller. Developers can access the TivaWare software suite, which includes driver libraries, a peripheral driver library, and example programs. Additionally, the microcontroller is supported by the comprehensive Energia development environment and Code Composer Studio IDE, simplifying the development process from prototyping to production.

With its robust feature set and extensive support ecosystem, the TM4C123BH6PZI7 from Texas Instruments represents a versatile and powerful solution for sophisticated embedded systems.
