Texas Instruments TMS320C28344ZFET Digital Signal Processor

The TMS320C28344ZFET is a high-performance digital signal processor (DSP) from Texas Instruments, designed for demanding applications that require intensive signal processing capabilities. This powerful component is part of the TMS320C28x series, which is well-known for its robust architecture, optimized for real-time control applications.

Key Features:

• High-Speed Processing: With a core frequency of up to 300 MHz, the TMS320C28344ZFET provides exceptional performance for complex algorithms and control systems.
• Memory: It includes 516 KB of on-chip RAM, which can be configured as cache or system memory, providing flexibility and efficiency in memory management.
• Enhanced Control Peripherals: It features advanced peripherals such as PWM outputs, capture inputs, and high-resolution timers that are ideal for motor control and other precision control systems.
• Robust Connectivity: This DSP supports multiple communication interfaces, including CAN, SPI, I2C, and UART, allowing for versatile connection options with other devices and systems.
• Integrated Analog-to-Digital Converter (ADC): The on-chip 12-bit ADC with a conversion rate of up to 12.5 MSPS (Mega Samples Per Second) enables the DSP to handle analog inputs directly, simplifying system design.
• Low Power Consumption: Designed with power efficiency in mind, the TMS320C28344ZFET maintains high performance while minimizing energy usage, making it suitable for portable and power-sensitive applications.

Applications:

The TMS320C28344ZFET is ideal for a wide range of applications, including:

• Industrial control systems
• Motor control
• Power management
• Renewable energy systems
• Automotive control units
• Medical instrumentation

Package and Quality:

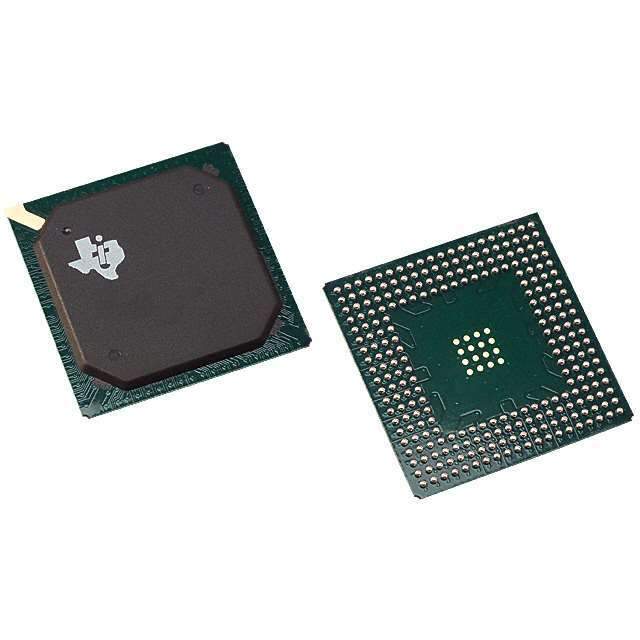

The DSP comes in a 176-pin NFBGA (Non-Field Replaceable Grid Array) package, which offers a compact footprint while maintaining excellent thermal performance. Texas Instruments ensures high manufacturing standards, providing reliability and consistency across their product range. The TMS320C28344ZFET is designed to meet the needs of mission-critical systems where performance and long-term reliability are paramount.
