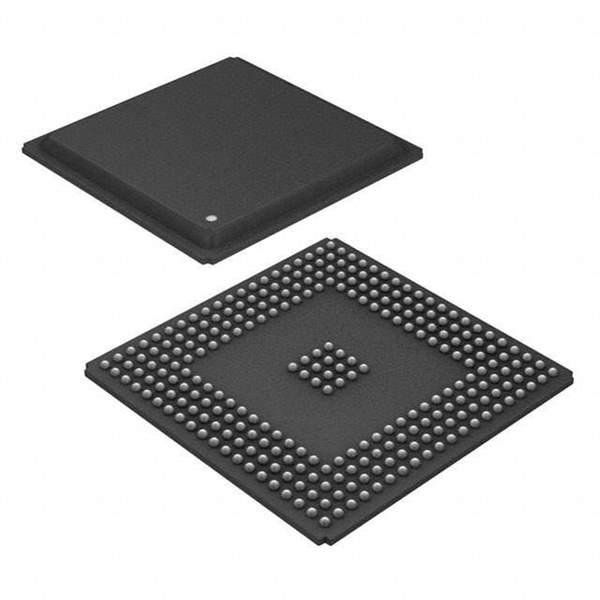

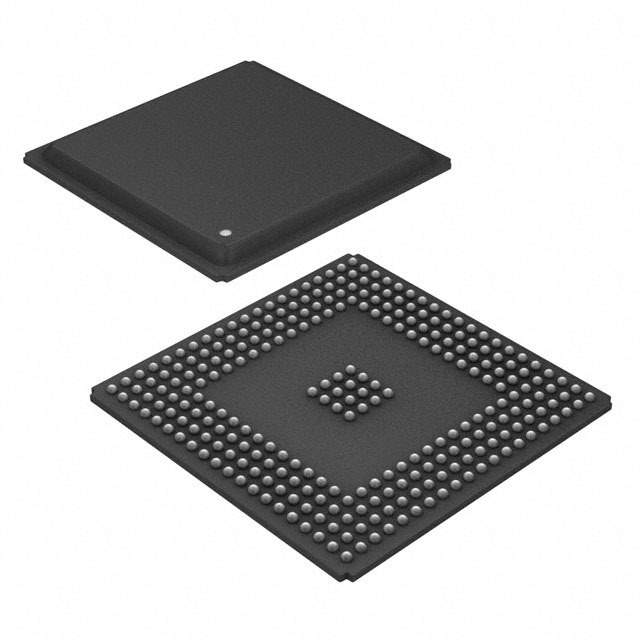

Overview of the TMS320C6711DZDP200 Digital Signal Processor

The TMS320C6711DZDP200 is a high-performance digital signal processor (DSP) from Texas Instruments, designed to meet the rigorous demands of processing-intensive applications. This DSP is part of the TMS320C67xx series, which is renowned for delivering exceptional computational power and efficiency, making it an ideal choice for a variety of multimedia, telecommunications, and industrial control systems.

Key Features

• High-Speed Performance: The TMS320C6711DZDP200 operates at a clock speed of 200MHz, providing the necessary throughput for complex signal processing tasks.
• Advanced Architecture: It features a VelociTI advanced very-long-instruction-word (VLIW) architecture, which allows multiple instructions to be executed simultaneously, increasing the overall processing speed.
• Large On-Chip Memory: The DSP is equipped with a large on-chip memory, including 256KB of Level 1 Program RAM, 64KB of Level 1 Data RAM, and an additional 8MB of Level 2 memory, which can be configured as cache or mapped RAM.
• High-Precision Arithmetic: It supports 32-bit floating-point arithmetic as well as 16-bit and 32-bit fixed-point processing, providing the precision required for high-fidelity audio and accurate signal analysis.

Connectivity and Integration

• Peripheral Support: The TMS320C6711DZDP200 offers a host of integrated peripherals, including a multichannel buffered serial port (McBSP), a host port interface (HPI), and a general-purpose I/O (GPIO) port for flexible connectivity options.
• External Interface: An external memory interface (EMIF) provides a direct connection to a wide range of external devices, such as SDRAM, Flash, and other memory types.

Development and Tools

Developers can take advantage of Texas Instruments' comprehensive suite of development tools for the TMS320C6711DZDP200. This includes the Code Composer Studio™ integrated development environment (IDE), which offers advanced debugging features, real-time analysis, and simulation capabilities. Additionally, a wide range of application-specific libraries and algorithms are available to accelerate development and optimize performance.

Applications

The versatility and power of the TMS320C6711DZDP200 make it suitable for a wide array of applications, including:

• Professional and consumer audio processing
• Telecommunications infrastructure
• Industrial control and automation systems
• Medical imaging and diagnostics
• Instrumentation and analysis

With its robust feature set and powerful processing capabilities, the TMS320C6711DZDP200 continues to be a go-to choice for engineers and developers who require a reliable and efficient DSP for their high-performance applications.
