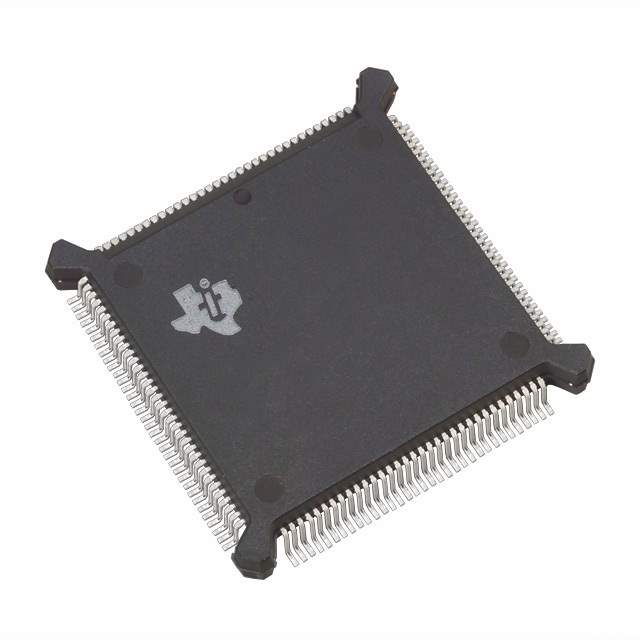

The TMS320F240PQA is a powerful digital signal processor (DSP) from Texas Instruments (TI), designed to cater to the demanding needs of modern control applications. This advanced DSP is a member of the TMS320C2xx generation, specifically tailored for high-performance, low-cost motor control, and digital power conversion.

Key Features

• Performance: The TMS320F240PQA operates at a frequency of up to 20 MHz, delivering the computational power necessary for complex algorithms in real-time control systems.
• Architecture: Built on a modified Harvard architecture, it features separate program and data spaces, allowing simultaneous access to program instructions and data, which results in exceptional processing speed and efficiency.
• Memory: It is equipped with 16 KB of on-chip Flash memory for program storage, and 544 words of data RAM, enabling robust applications.
• Peripherals: This DSP includes a variety of integrated peripherals such as an Event Manager, a Serial Port Interface, an Analog-to-Digital Converter (ADC), and a CAN (Controller Area Network) interface module, which simplifies system design and reduces the need for external components.
• Precision: The 16-bit fixed-point DSP core ensures precise numerical processing, which is critical for control applications where accuracy is paramount.
• Power Management: The TMS320F240PQA also offers a power-saving idle mode, which significantly reduces power consumption when the processor is not in use.

Applications

With its robust set of features, the TMS320F240PQA is ideal for a range of applications, including:

• Industrial Motor Control
• Automotive Control Systems
• Robotics and Automated Machinery
• Digital Power Supplies
• Inverters and Converters

Design Support

Texas Instruments provides comprehensive design support for the TMS320F240PQA with software tools, reference designs, and technical documentation to assist developers in creating efficient, reliable, and cost-effective solutions.

In summary, the TMS320F240PQA from Texas Instruments is a versatile and powerful DSP that offers a blend of performance, precision, and integrated features, making it an excellent choice for designers and engineers looking to push the boundaries of control applications.
